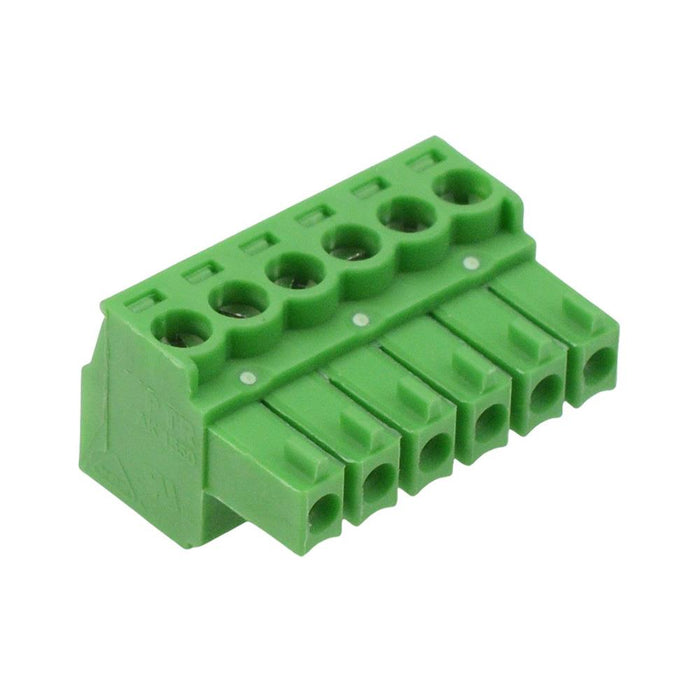

6-Way 3.5mm Right Angle Pluggable Terminal Block Green 8A 300V
by PTR HARTMANN
SKU 490584
MPN: AK1550/06-3,5
Availability:
49 in stock
Original price
£1.84
-
Original price
£1.84
Original price
£1.84
£1.93
£1.93
-
£1.93
Current price
£1.93
6 pole pluggable terminal block manufactured by PTR HARTMANN, featuring a 3.5mm pitch and parallel wire entry. The terminal blocks are rated up to 8A, making them suitable for a wide range of PCB applications.
- 6 pole
- 3.5mm pitch
- Right angle
- Material: PA66
- Rating: 8A 300V
- Wire size: 28-16AWG
Specification
| Back Order Lead Time | 140 Days |
| Colour | Green |
| Contact Material | Bronze |
| Current Rating | 8A |
| Housing Material | PA66 |
| MOQ | 1 |
| Mounting Type | Cable Mount |
| Number of Ways | 6 |
| Operating Temperature | -40°C to +105°C |
| Pitch | 3.5mm |
| Termination Method | Screw |
| Voltage Rating | 300V |
| Wire Range | 28-16AWG |
