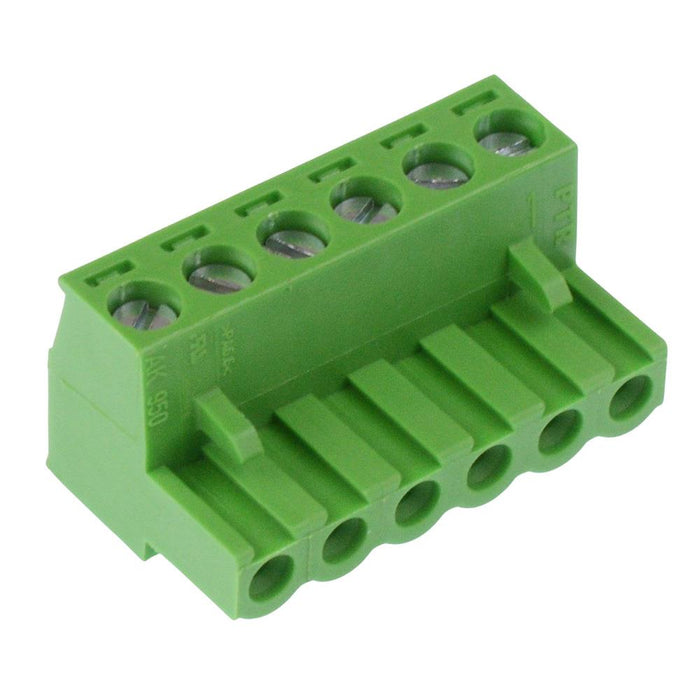

6-Way 5.00mm Right Angle Pluggable Terminal Block Green 15A 300V
by PTR HARTMANN
SKU 487735
MPN: AK950/6-5,0-GREEN
Availability:
201 in stock
Original price
£0.93
-
Original price
£0.93
Original price
£0.93
£0.93
£0.93
-
£0.93
Current price
£0.93
6 pole pluggable terminal block manufactured by PTR HARTMANN, featuring a 5mm pitch and parallel wire entry. The terminal blocks are rated up to 15A, making them suitable for a wide range of PCB applications.
6 pole 5.00mm pitch Right angle Material: PA66 Rating: 15A 300V Wire size: 22-12AWG
Specification
| Back Order Lead Time | 10 Days |
| Colour | Green |
| Contact Material | Brass |
| Current Rating | 15A |
| Housing Material | PA66 |
| Mounting Type | Cable Mount |
| Number of Ways | 6 |
| Operating Temperature | -40°C to +105°C |
| Pitch | 5.00mm |
| Termination Method | Screw |
| Voltage Rating | 300VAC |
| Wire Range | 22-12AWG |
