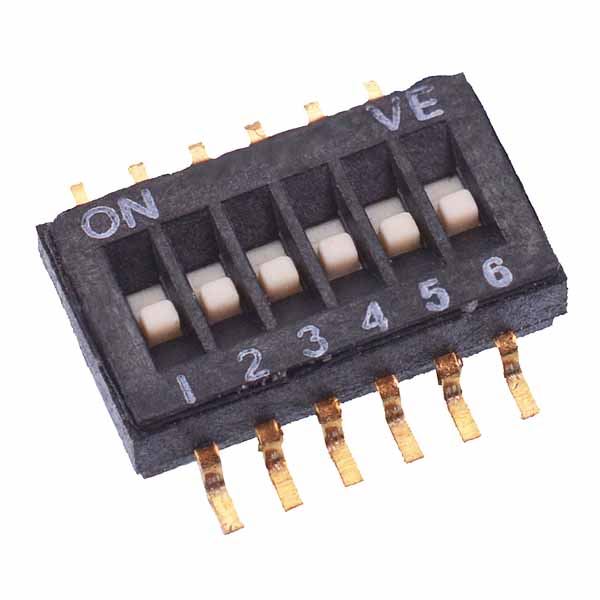

6 Way Half Pitch SMD DIL Switch 1.27mm

SKU 483048

MPN: 483048

497 in stock, ready to be shipped
Original price £0.77 - Original price £0.77
Original price
£0.77 Inc VAT
£0.77 - £0.77
Current price £0.77 Inc VAT
6 way micro miniature DIL switch featuring SPST contacts and a 1.27mm pitch, suitable for mounting to a PCB.

  • 2 ways
  • 1.27mm terminal pitch
  • Switching rating: 25mA 24VDC
  • Steady state rating: 100mA 50VDC
  • SPST contacts
  • Height above PCB: 2.3mm
  • Body width: 5.4mm
  • Specification
    Actuation Latching
    Colour Black
    Contact configuration SPST
    Contact rating 25mA 24VDC
    Current rating 25mA
    Electrical life 1000 Cycles
    Material PPS
    Mounting style Through Hole
    Number of positions 2
    Number of ways 6
    Operating force 9.8N
    Operating temperature -40°C to +85°C
    Pitch 1.27mm
    Switch operation On-Off
    Terminal type Solder
    Voltage rating 24VDC
