6 Way Standard Blade Compact Fuse Box 32VDC R3-76D-01-3106

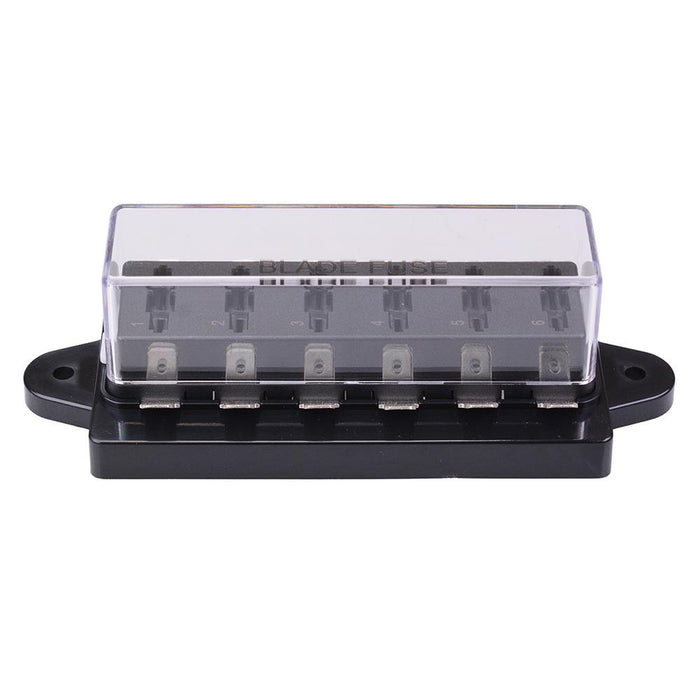

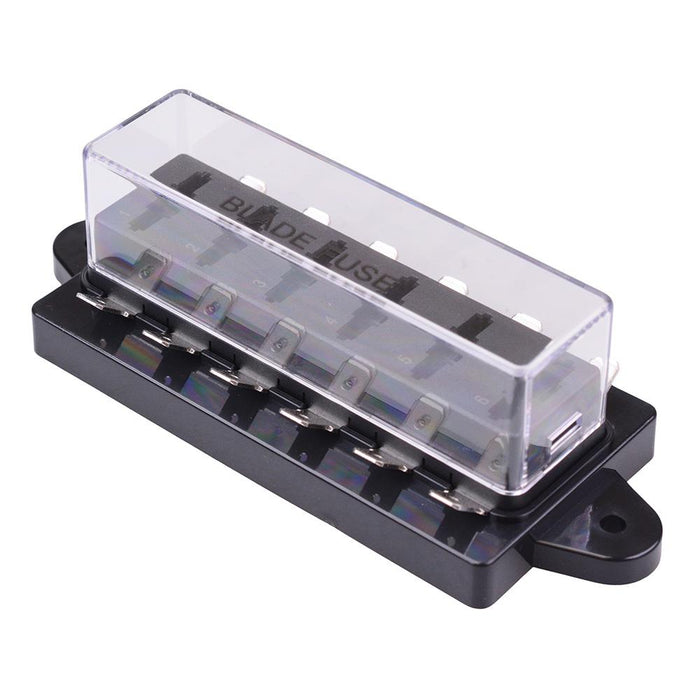

The R3-76D-01-3L106 is a 6 way standard blade fuse box, featuring a clear plastic lid and slim design. The box features 6.3mm quick connectors for easy wiring 32VDC voltage rating. The box features 30A circuit rating per circuit and is suitable for a wide range of 12V and 24V applications.

6 way blade fuses

Output rating: 30A per circuit

6.3mm quick connect terminals

Mounting hole pitch: 112mm

Dimensions: 136.9 x 52.2 x 40.5mm (length x width x height)
