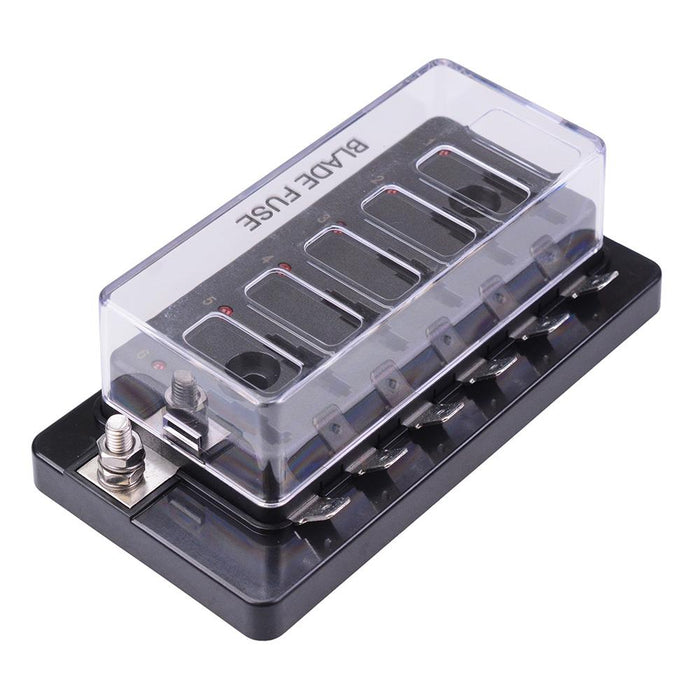

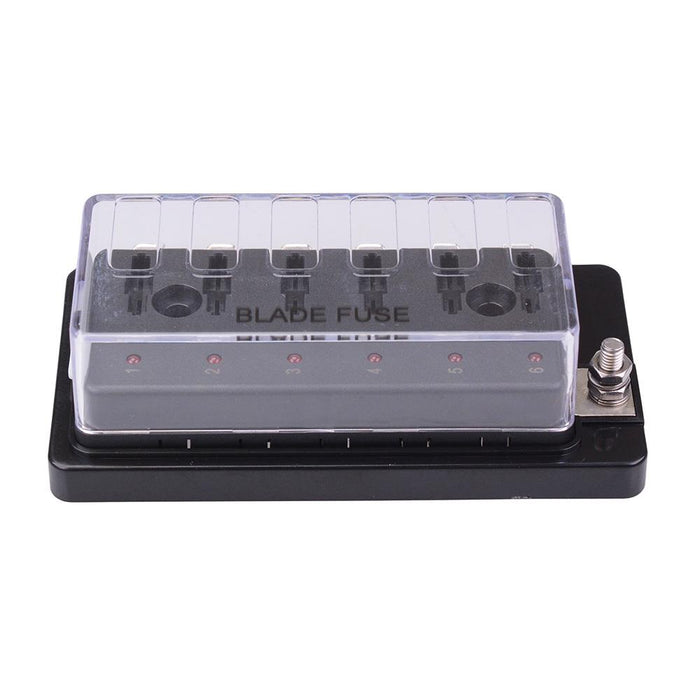

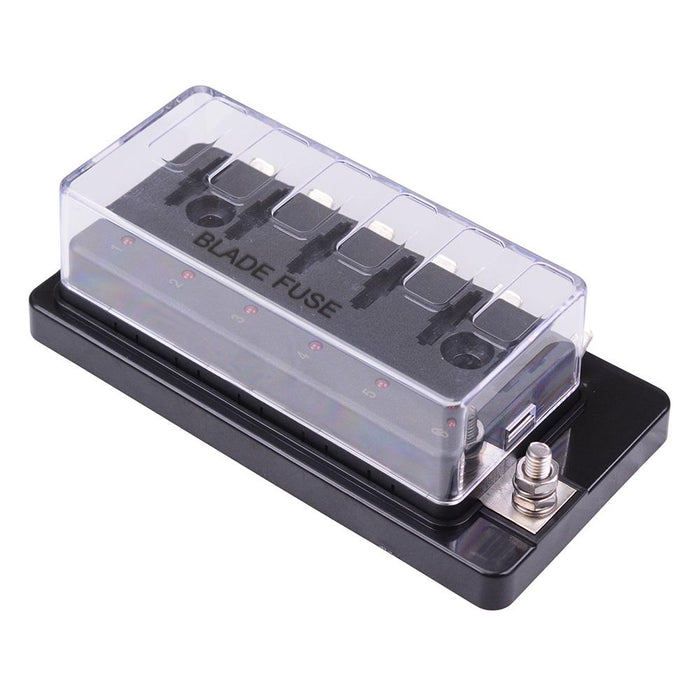

6 Way Standard Blade Compact Fuse Box with LED Indication R3-76C-01-3L106

The R3-76C-01-3L106 is a 6 way standard blade fuse box, featuring a clear plastic lid and red LED indicators for when a fuse is blown. The box features an M5 stud and 6.3mm quick connectors for easy wiring. The box features 30A circuit rating per circuit and is suitable for a wide range of 12V and 24V applications.

6 way blade fuses

Input rating: 100A

Output rating: 30A per circuit

Red LED indication

6.3mm quick connect terminals

M5 stud

Dimensions: 121 x 62.5 x 40.5mm (length x width x height)
