6-Way Straight PCB Crimp Housing 2.54mm
SKU 483338
MPN: 483338
Availability:
Out of stock
Sold out
Original price
£0.15
-
Original price
£0.15
Original price
£0.15
£0.15
-
£0.15
Current price
£0.15

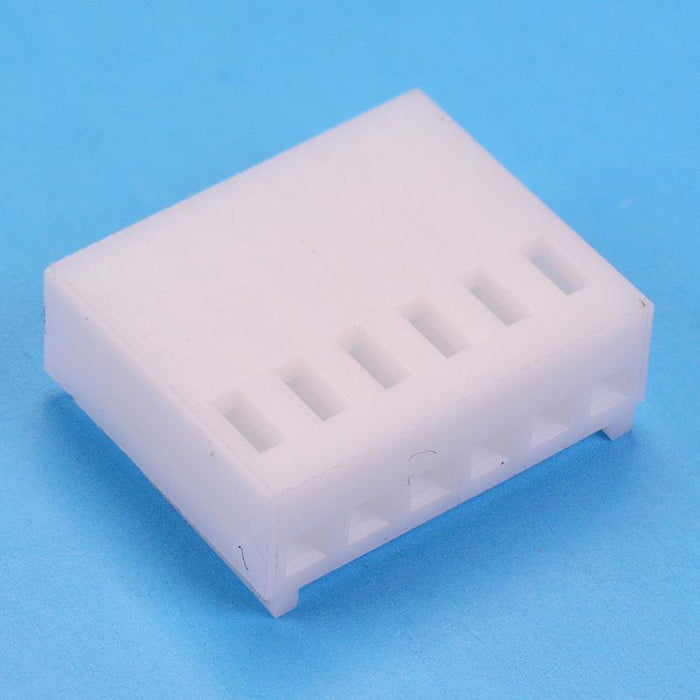

Single row 6 way housing with 2.54mm pitch suitable for connecting wires to PCBs. The housing fits 22-28AWG cable and is suitable for replacing Molex 5051 connectors.
2.54mm pitch Rated Current: 4A Rated Voltage: 250V
Specification
Back Order Lead Time | 45 Days |
Current Rating | 4A |
Housing Material | PA66 |
MOQ | 5 |
Mounting Type | Cable Mount |
Number of Ways | 6 |
Operating Temperature | -25°C to +85°C |
Pitch | 2.54mm |
Termination Method | Crimp |
Voltage Rating | 250VAC |
Wire Range | 22-28AWG |
