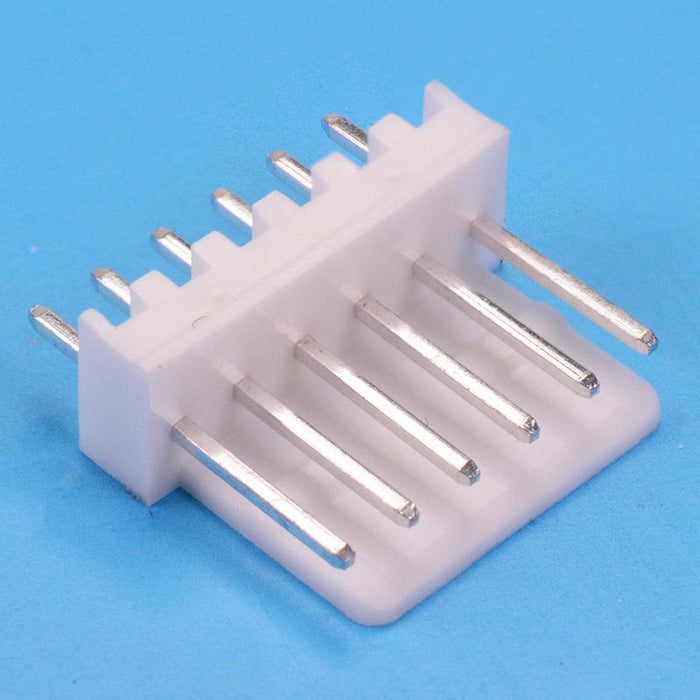

6-Way Straight Pin PCB Header 2.54mm
SKU 483332
MPN: 483332
Availability:
314 in stock
Original price
£0.15
-
Original price
£0.15
Original price
£0.15
£0.15
-
£0.15
Current price
£0.15
Single row 6 way pin header with 2.54mm pitch suitable for connecting wires to PCBs. The headers feature a friction lock to ensure secure retention when mated and are suitable for replacing Molex 5051 connectors.
2.54mm pitch Solder termination Nylon-66 housing Tin plated brass contacts Rated Current: 4A Rated Voltage: 250V
Specification
| Back Order Lead Time | 45 Days |
| Current Rating | 4A |
| Housing Material | PA66 |
| MOQ | 5 |
| Mounting Type | PCB Mount |
| Number of Pins | 6 |
| Number of Ways | 6 |
| Operating Temperature | -25°C to +85°C |
| Pitch | 2.54mm |
| Termination Method | Solder |
| Voltage Rating | 250VAC |
| Wire Range | 22-28AWG |
