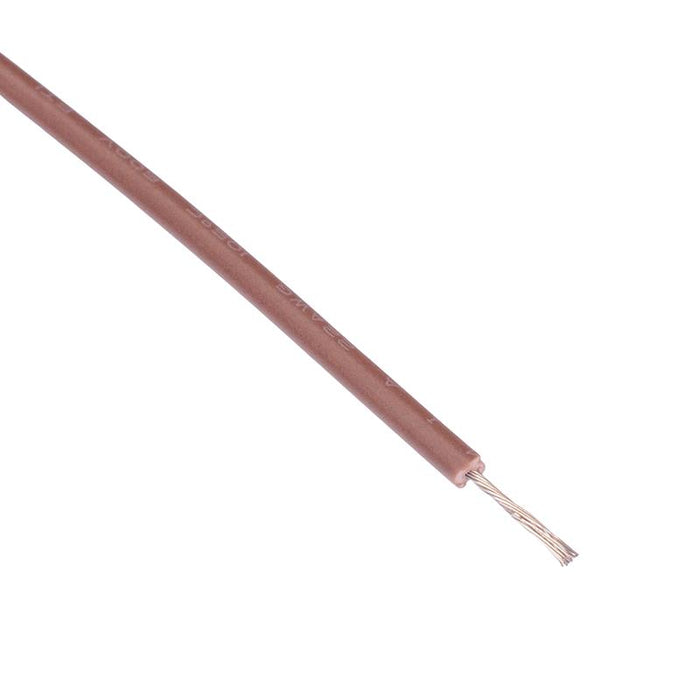

610m Brown UL1015 22AWG 17/0.16mm Tinned Copper Stranded Wire
SKU 990247
MPN: 990247
Availability:
Only 2 left!
Original price
£99.24
-
Original price
£99.24
Original price
£99.24
Inc VAT
£99.24
-
£99.24
Current price
£99.24
Inc VAT
Purple 22AWG multi-stranded copper wire featuring PVC insulation manufactured to UL1015 specification. Brown PVC insulation provides excellent resistance to oil, petrol, diesel and high temperatures. The cable is suitable for automotive and various other applications requiring a high performance wire.
Overall diameter: 2.4mm Wide temperature range Tinned copper conductor Rated voltage: 600V 17/0.16mm copper stranding Supplied in a 610 metre coil
Specification
Back order lead time | 120 Days |
Colour | Brown |
Conductor cross section | 0.32mm² |
Conductor diameter | 0.76mm |
Conductor material | Tinned Copper |
Conductor stranding | 17/0.16mm |
Current rating | 6A |
Insulation material | PVC |
Insulation thickness | 0.79mm |
Operating temperature | -30°C to 105°C |
Overall diameter | 2.4mm |
Voltage rating | 600V |
Wire gauge | 22AWG |
