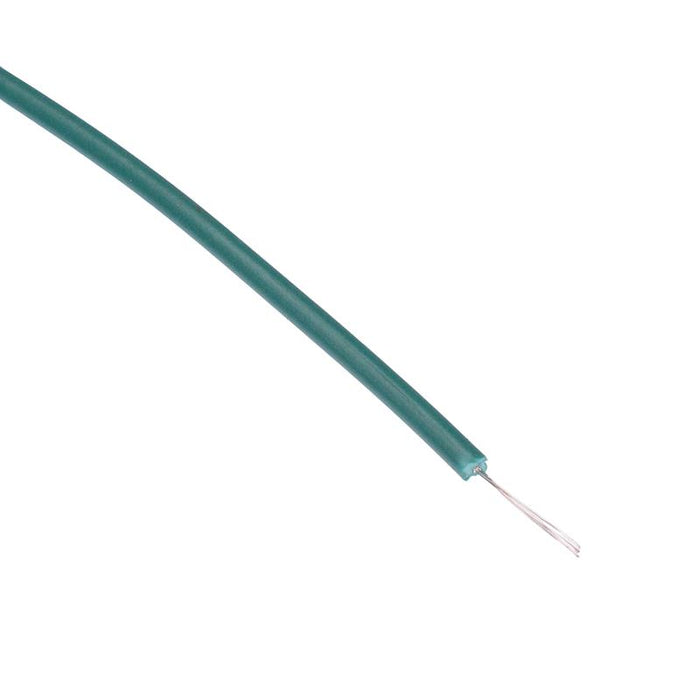

610m Green UL1015 26AWG 7/0.16mm Tinned Copper Stranded Wire
SKU 990260
MPN: 990260
Availability:
Out of stock
Sold out
Original price
£75.39
-
Original price
£75.39
Original price
£75.39
£75.39
-
£75.39
Current price
£75.39
Green 26AWG multi-stranded copper wire featuring PVC insulation manufactured to UL1015 specification. The PVC insulation provides excellent resistance to oil, petrol, diesel and high temperatures. The cable is suitable for automotive and various other applications requiring a high performance wire.
Overall diameter: 2.0mm Wide temperature range Tinned copper conductor Rated voltage: 600V 7/0.16mm copper stranding Supplied in a 610 metre coil
Specification
Back Order Lead Time | 120 Days |
Colour | Green |
Conductor Cross Section | 0.13mm² |
Conductor Diameter | 0.49mm |
Conductor Material | Tinned Copper |
Conductor Stranding | 7/0.16mm |
Current Rating | 2A |
Insulation Material | PVC |
Insulation Thickness | 0.76mm |
Operating Temperature | -30°C to 105°C |
Overall Diameter | 2.0mm |
Voltage Rating | 600V |
Wire Gauge | 26AWG |
