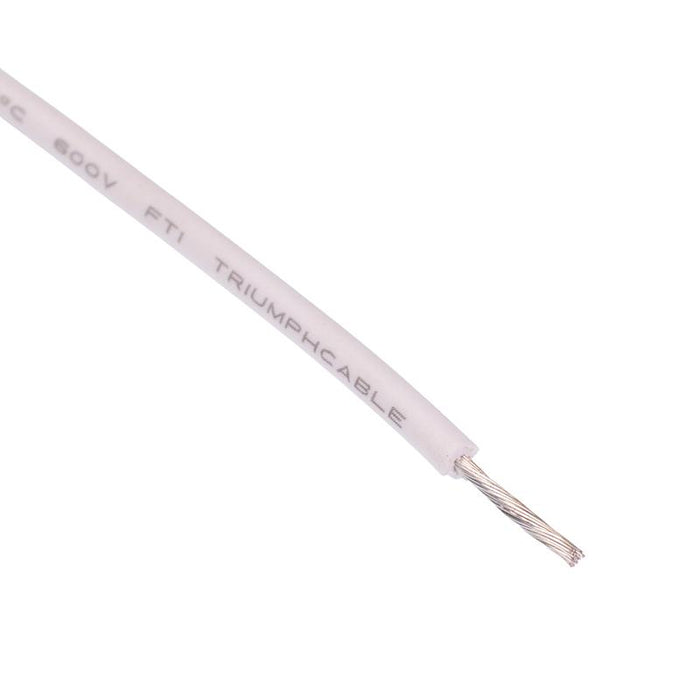

610m White UL1015 18AWG 34/0.18mm Tinned Copper Stranded Wire
SKU 990236
MPN: 990236
Availability:
Out of stock
Sold out
Original price
£182.36
-
Original price
£182.36
Original price
£182.36
£182.36
-
£182.36
Current price
£182.36
White 18AWG multi-stranded copper wire featuring PVC insulation manufactured to UL1015 specification. The PVC insulation provides excellent resistance to oil, petrol, diesel and high temperatures. The cable is suitable for automotive and various other applications requiring a high performance wire.
Overall diameter: 2.8mm Wide temperature range Tinned copper conductor Rated voltage: 600V 34/0.18mm copper stranding Supplied in a 610 metre coil
Specification
Back Order Lead Time | 120 Days |
Colour | White |
Conductor Cross Section | 0.82mm² |
Conductor Diameter | 1.2mm |
Conductor Material | Tinned Copper |
Conductor Stranding | 34/0.18mm |
Current Rating | 18A |
Insulation Material | PVC |
Insulation Thickness | 0.79mm |
Operating Temperature | -30°C to 105°C |
Overall Diameter | 2.8mm |
Voltage Rating | 600V |
Wire Gauge | 18AWG |
