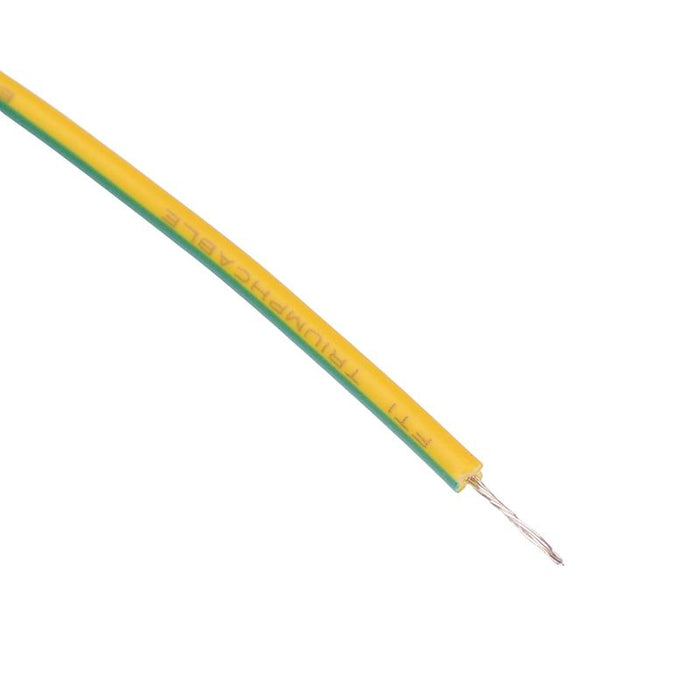

610m Yellow / Green UL1015 22AWG 17/0.16mm Tinned Copper Stranded Wire

SKU 990280

MPN: 990280

Availability:
Out of stock
Sold out
Original price £99.24 - Original price £99.24
Original price
£99.24
£99.24 - £99.24
Current price £99.24
Yellow / Green 22AWG multi-stranded copper wire featuring PVC insulation manufactured to UL1015 specification. The PVC insulation provides excellent resistance to oil, petrol, diesel and high temperatures. The cable is suitable for automotive and various other applications requiring a high performance wire.

  • Overall diameter: 2.4mm
  • Wide temperature range
  • Tinned copper conductor
  • Rated voltage: 600V
  • 17/0.16mm copper stranding
  • Supplied in a 610 metre coil
  • Specification
    Back Order Lead Time 120 Days
    Colour Yellow / Green
    Conductor Cross Section 0.32mm²
    Conductor Diameter 0.76mm
    Conductor Material Tinned Copper
    Conductor Stranding 17/0.16mm
    Current Rating 6A
    Insulation Material PVC
    Insulation Thickness 0.79mm
    Operating Temperature -30°C to 105°C
    Overall Diameter 2.4mm
    Voltage Rating 600V
    Wire Gauge 22AWG
