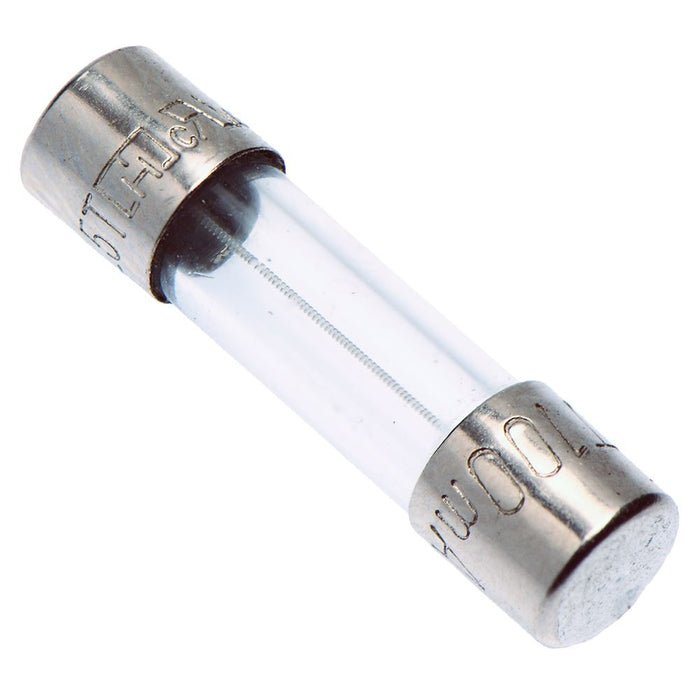

630mA 5x20mm Glass Time Delay Fuse 250V
SKU 550053
MPN: FS-142-0630
Availability:
779 in stock
Original price
£0.13
-
Original price
£0.13
Original price
£0.13
£0.13
£0.13
-
£0.13
Current price
£0.13
630mA 5x20mm glass bodied cylindrical cartridge fuse featuring slow blow characteristic and 250VAC voltage rating. The fuse is ideal for protecting devices from short circuits and overcurrent.
Current rating: 630mA Voltage rating: 250VAC Blow characteristic: slow Dimensions: 5.2x20mm (diameter x length) Cap material: nickel plated brass Tube material: glass UL, CCC, VDE, KC approved
Specification
| Back Order Lead Time | 150 |
| Blow Characteristic | Slow Blow |
| Body Material | Glass |
| Contact Material | Nickel Plated Brass |
| Current Rating | 630mA |
| Diameter | 5mm |
| Length | 20mm |
| MOQ | 10 |
| Operating Temperature | -55°C to +125°C |
| Voltage Rating | 250VAC |
