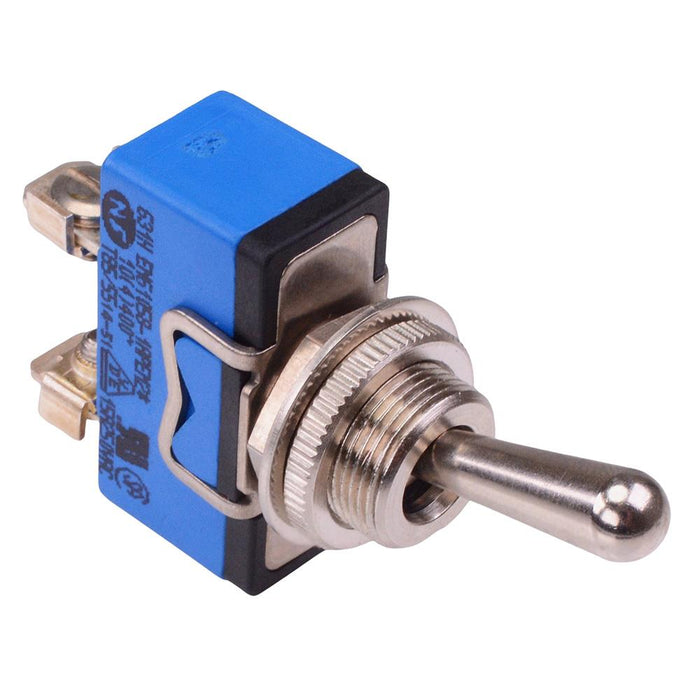

631HT APEM On-Off 12mm Toggle Switch SPST 15A
by APEM
SKU 487902
MPN: 631HT
Availability:
Out of stock
Sold out
Original price
£6.04
-
Original price
£6.04
Original price
£6.04
£6.04
£6.04
-
£6.04
Current price
£6.04
The 631HT is a SPST toggle switch with 12mm bushing and screw terminals, manufactured by APEM. The switch features a metal lever and robust mechanim, suitable for industrial applications with a high amperage.
SPST contacts On-Off function Screw terminals Rating: 15A 250VAC Panel cut-out: 12.2mm Panel thickness: 4.5mm max Terminals: silver/nickel alloy
Specification
| Actuation | Latching |
| Back Order Lead Time | 10 Days |
| Contact Configuration | SPST |
| Contact Material | Silver / Nickel Alloy |
| Contact Rating | 15A 250VAC |
| Current Rating | 15A |
| Electrical Life | 10,000 Cycles |
| Illuminated | No |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -20°C to +55°C |
| Panel Cut Out | 12.2mm |
| Product Series | 600 |
| Switch Operation | On-Off |
| Terminal Type | Screw |
| Voltage Rating | 250VAC / 24VDC |
