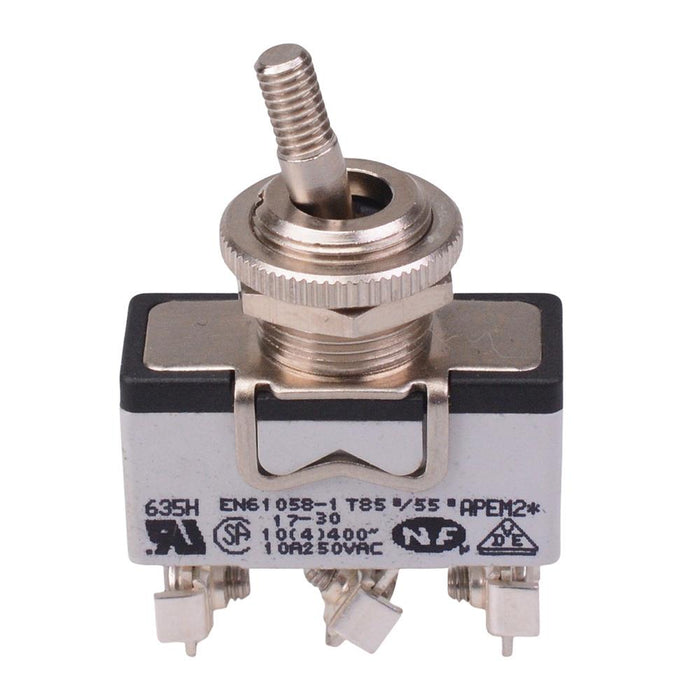

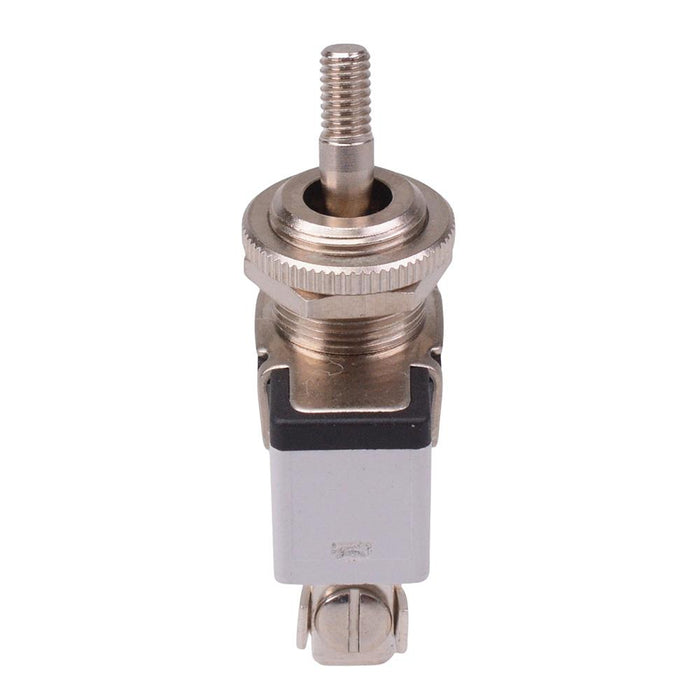

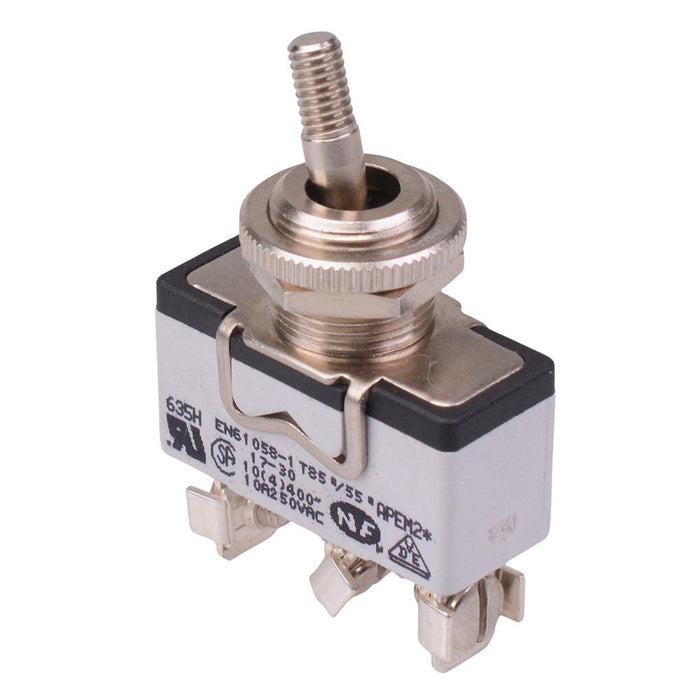

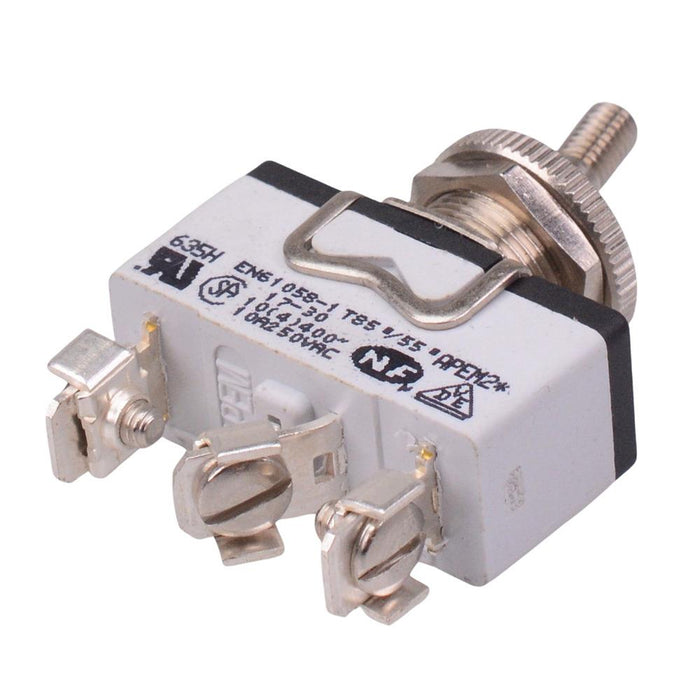

635HX2330 APEM On-(On) Momentary 12mm Toggle Switch SPDT 15A 250VAC
by APEM
SKU 489874
MPN: 635HX2330
Availability:
38 in stock
Original price
£18.66
-
Original price
£18.66
Original price
£18.66
£21.17
£21.17
-
£21.17
Current price
£21.17
The 635HX2330 is a high amperage On-(On) momentary toggle switch featuring a threaded lever and SPDT contacts. The switch features screw terminals and are popular for a wide range of applications due to there reliability and rugged design.
On-(On) momentary operation SPDT contacts Screw terminals Threaded 4x0.75mm lever Black 12x0.75mm bushing Rating: 10A 250VAC Panel cut-out: 12.2mm Maximum panel thickness: 4.5mm UL, CSA and NF-VDE approved
Specification
| Actuation | Momentary |
| Back Order Lead Time | 120 |
| Contact Configuration | SPDT |
| Contact Material | Silver/Nickel Alloy |
| Contact Rating | 10A 250VAC |
| Current Rating | 10A |
| Electrical Life | 10,000 Cycles |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -20°C to +55°C |
| Panel Cut Out | 12.2mm |
| Panel Thickness | 4.5mm |
| Product Series | 600 |
| Switch Operation | On-(On) |
| Terminal Type | Screw |
| Voltage Rating | 250VAC |
