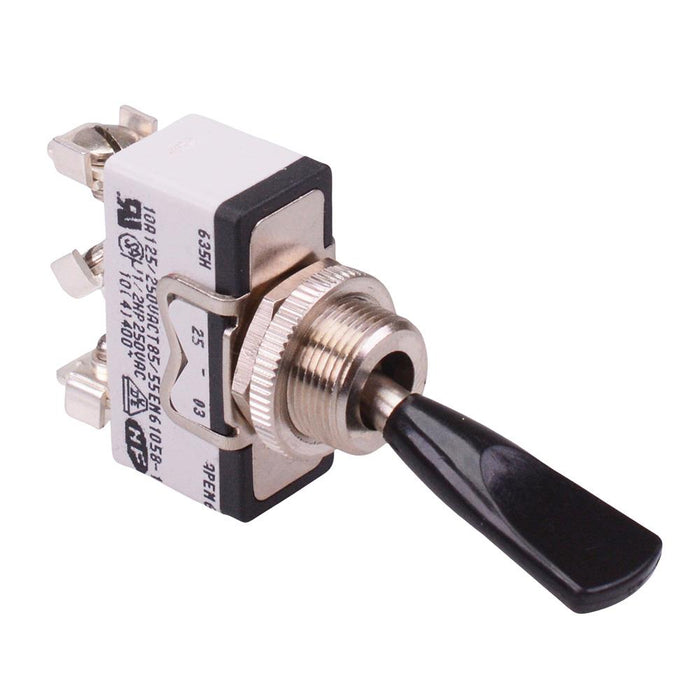

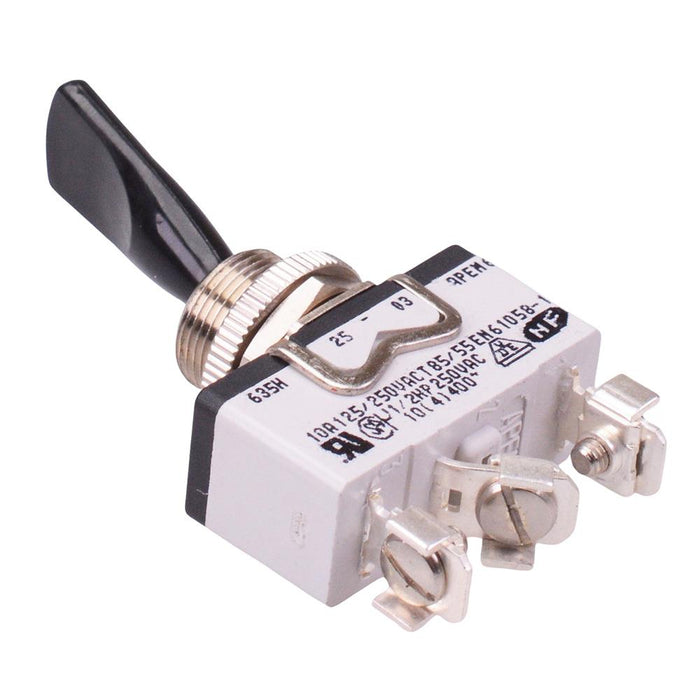

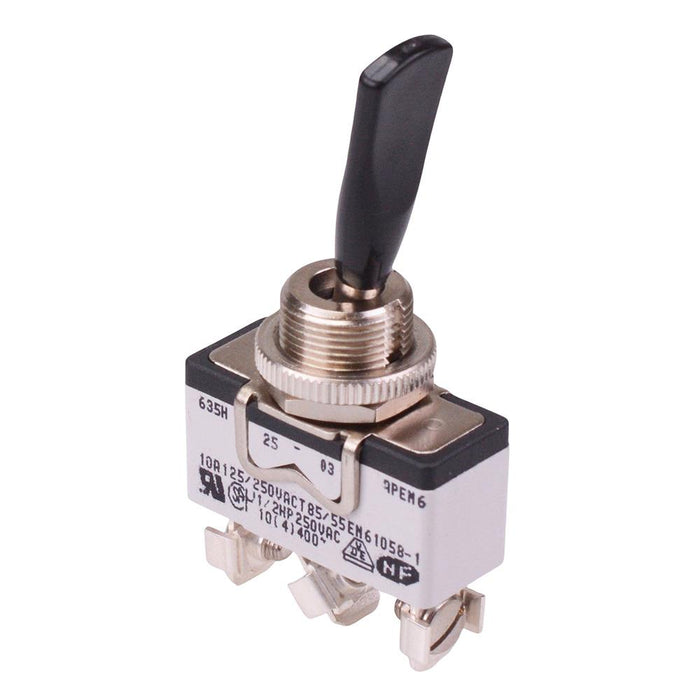

635HX2595 On-(On) Momentary Black Duckbill Lever 12mm Toggle Switch SPDT 10A APEM
by APEM
SKU 490492
MPN: 635HX2595
Availability:
24 in stock
Original price
£13.11
-
Original price
£13.11
Original price
£13.11
£13.11
-
£13.11
Current price
£13.11
The 635HX2595 is a high amperage On-(On) momentary toggle switch featuring a robust construction and SPDT contacts. The switch features screw terminals and duckbill lever making it popular for a wide range of applications including automotive and marine.
On-(On) momentary operation SPDT contacts Screw terminals Rating: 15A 125VAC, 12A 250VAC, 5A 24VDC Peak current: 30A max. during 1/2 sine, 250VAC Panel cut-out: 12.2mm Maximum panel thickness: 4.5mm Dimensions: 62.8 x 29.5 x 14mm (height x width x depth) UL, CSA and NF-VDE approved
Specification
| Actuation | Momentary |
| Back Order Lead Time | 110 Days |
| Colour | Black |
| Contact Configuration | SPDT |
| Contact Material | Silver / Nickel Alloy |
| Contact Rating | 15A 125VAC, 12A 250VAC, 5A 24VDC |
| Current Rating | 10A |
| Electrical Life | 10,000 Cycles |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -20°C to +55°C |
| Panel Cut Out | 12.2mm |
| Panel Thickness | 4.5mm |
| Product Series | 600 |
| Switch Operation | On-(On) |
| Terminal Type | Screw |
| Voltage Rating | 250VAC |
