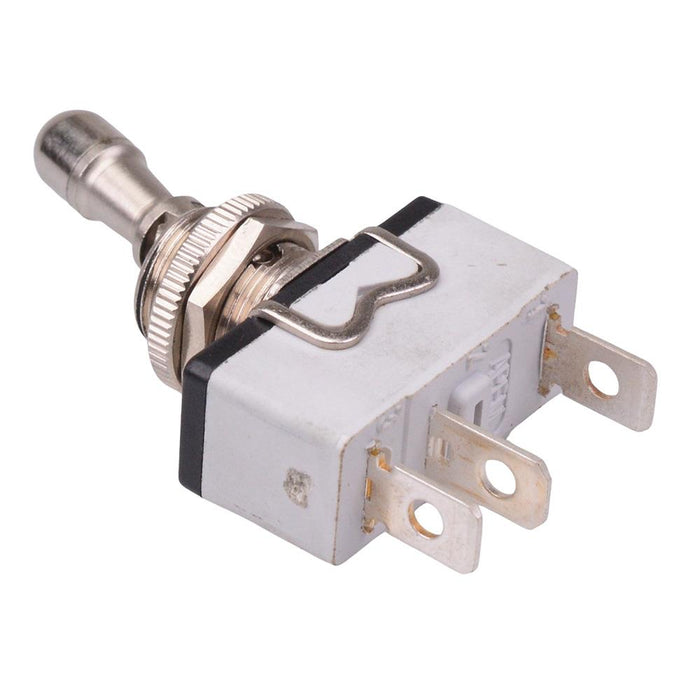

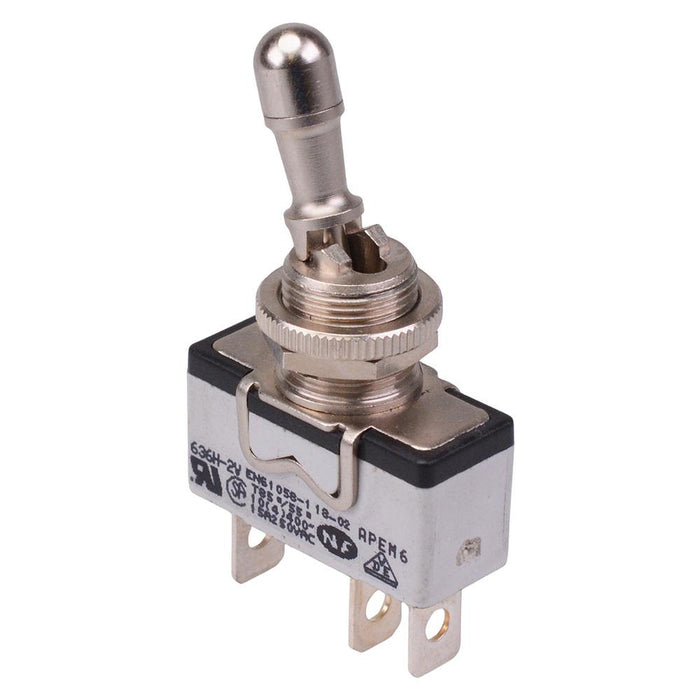

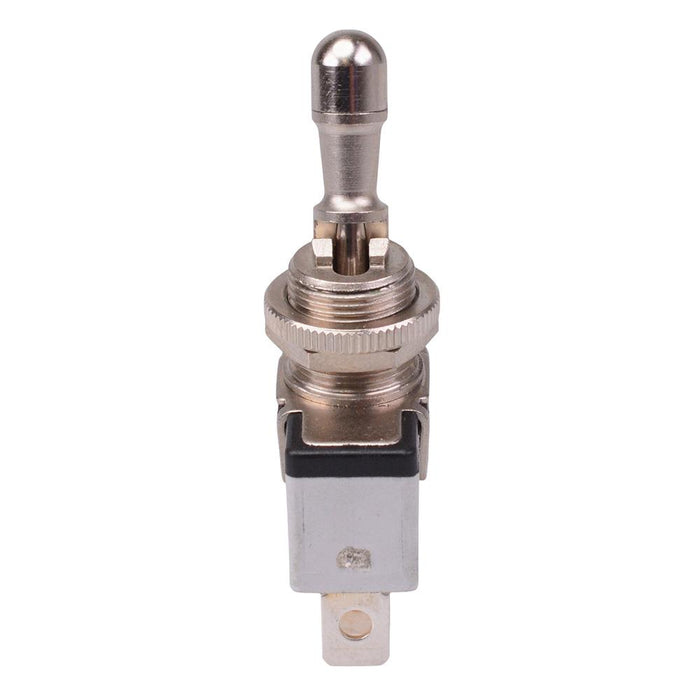

636H/2-2V APEM On-On 12mm Toggle Switch Locking Lever SPDT 15A
by APEM
SKU 489875
MPN: 636H/2-2V
Availability:
30 in stock
Original price
£14.86
-
Original price
£14.86
Original price
£14.86
£16.85
£16.85
-
£16.85
Current price
£16.85
The 636H/2-2V is a high amperage On-On toggle switch featuring a locking lever and DPDT contacts. The switch features quick connect terminals and are popular for a wide range of applications due to there reliability and rugged design.
On-On operation SPDT contacts 6.35mm quick connect / solder lug terminals Locking lever in both positions Rating: 15A 250VAC Panel cut-out: 12.2mm Maximum panel thickness: 4.5mm UL, CSA and NF-VDE approved
Specification
| Actuation | Latching |
| Back Order Lead Time | 120 |
| Contact Configuration | SPDT |
| Contact Material | Silver/Nickel Alloy |
| Contact Rating | 15A 250VAC |
| Current Rating | 15A |
| Electrical Life | 10,000 Cycles |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -20°C to +55°C |
| Panel Cut Out | 12.2mm |
| Panel Thickness | 4.5mm |
| Product Series | 600 |
| Switch Operation | On-On |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
