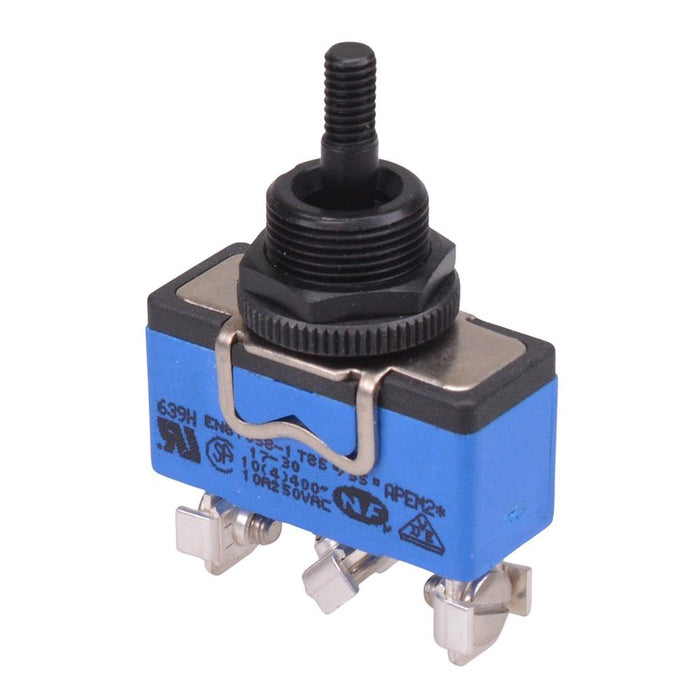

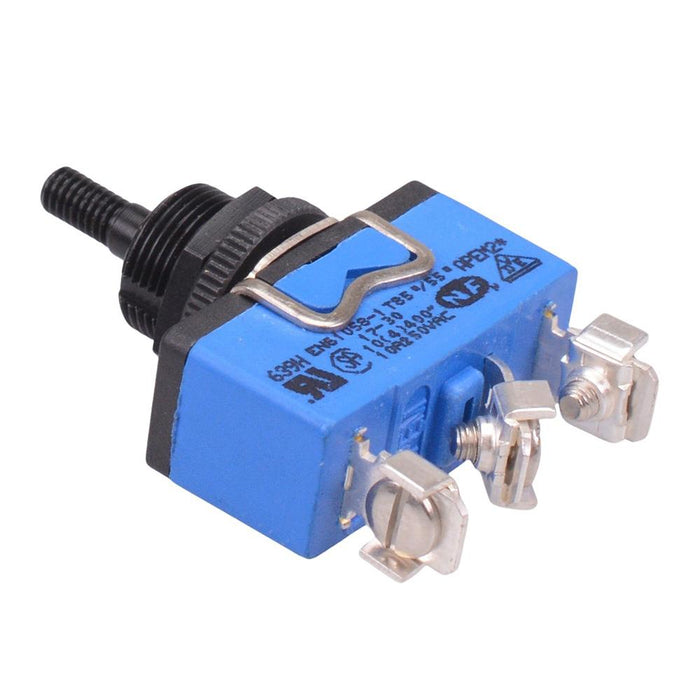

639HGX2330 APEM On-Off-On 12mm Toggle Switch SPDT 15A 250VAC
by APEM
SKU 492440
MPN: 639HGX2330
Availability:
72 in stock
Original price
£12.42
-
Original price
£12.42
Original price
£12.42
£12.42
-
£12.42
Current price
£12.42
The 639HX2330 is a high amperage On-Off-On toggle switch featuring a threaded lever and SPDT contacts. The switch features screw terminals and are popular for a wide range of applications due to there reliability and rugged design.
On-Off-On operation SPDT contacts Screw terminals Threaded 4x0.75mm lever Black 12x0.75mm bushing Rating: 10A 250VAC Panel cut-out: 12.2mm Maximum panel thickness: 4.5mm UL, CSA and NF-VDE approved
Specification
| Actuation | Latching |
| Back Order Lead Time | 120 Days |
| Contact Configuration | SPDT |
| Contact Material | Silver/Nickel Alloy |
| Contact Rating | 15A 250VAC |
| Current Rating | 15A |
| Electrical Life | 10,000 Cycles |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 3 |
| Operating Temperature | -20°C to +55°C |
| Panel Cut Out | 12.2mm |
| Panel Thickness | 4.5mm |
| Product Series | 600 |
| Switch Operation | On-Off-On |
| Terminal Type | Screw |
| Voltage Rating | 250VAC |
