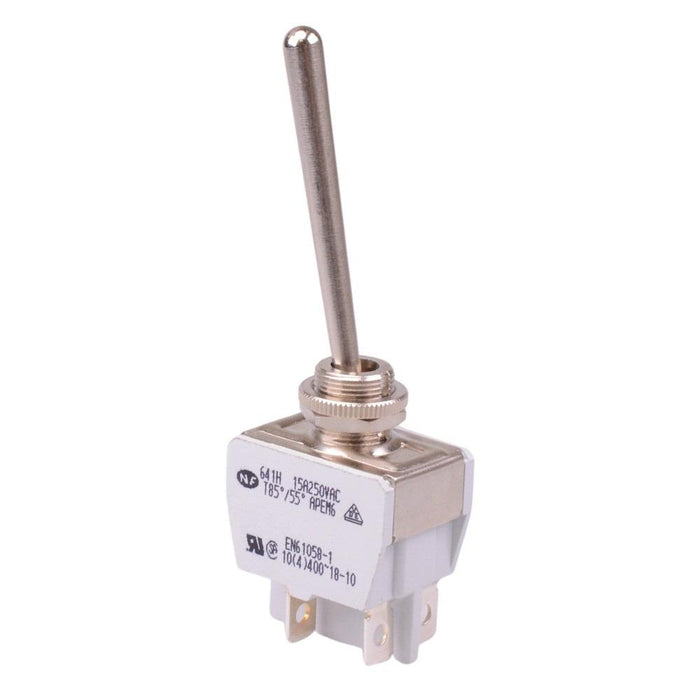

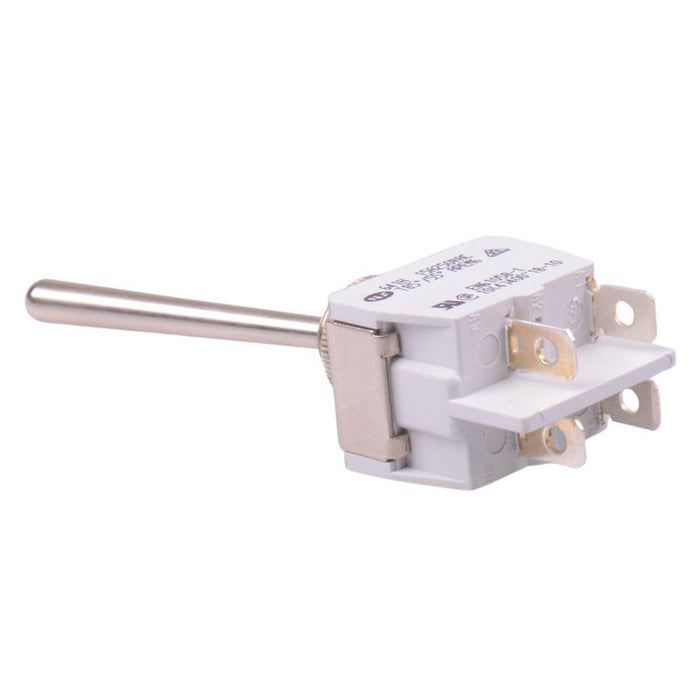

641H/2X2121 APEM On-Off 12mm Toggle Switch Long Lever DPST 15A
by APEM
SKU 489878
MPN: 641H/2X2121
Availability:
Out of stock
Sold out
Original price
£15.69
-
Original price
£15.69
Original price
£15.69
£16.47
£16.47
-
£16.47
Current price
£16.47
The 641H/2X2121 is a high amperage On-Off toggle switch featuring a long lever and DPST contacts. The switch features quick connect terminals and are popular for a wide range of applications due to there reliability and rugged design.
On-Off operation DPST contacts Quick connect terminals Rating: 15A 250VAC Panel cut-out: 12.2mm Maximum panel thickness: 4.5mm 49mm length lever UL, CSA and NF-VDE approved
Specification
| Actuation | Latching |
| Contact Configuration | DPST |
| Contact Material | Silver/Nickel Alloy |
| Contact Rating | 15A 250VAC |
| Current Rating | 15A |
| Electrical Life | 10,000 Cycles |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Operating Temperature | -20°C to +55°C |
| Panel Cut Out | 12.2mm |
| Panel Thickness | 4.5mm |
| Product Series | 600 |
| Switch Operation | On-Off |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
