6421A-03K APEM Black On-Off 12mm Toggle Switch SPST 6.5A
by APEM
SKU 487590
MPN: 6421A-03K
Availability:
14 in stock
Original price
£17.68
-
Original price
£17.68
Original price
£17.68
Inc VAT
£17.68
-
£17.68
Current price
£17.68
Inc VAT

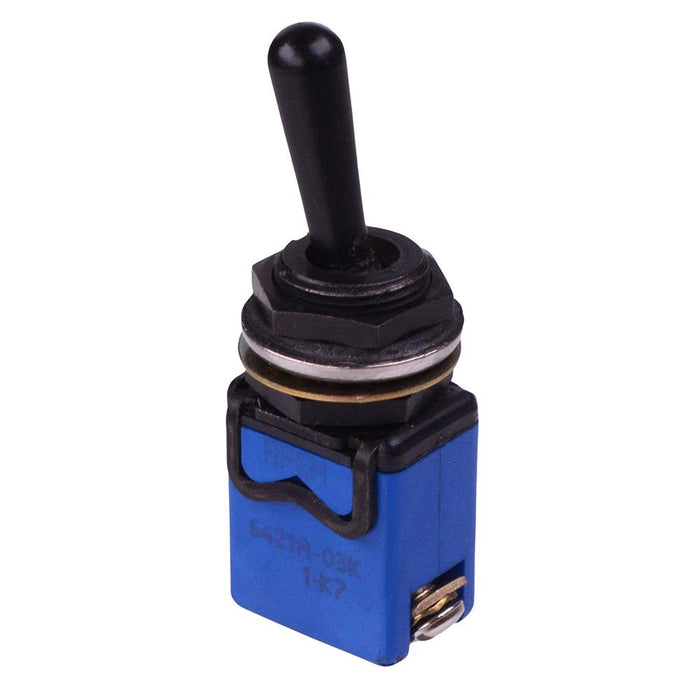

The 6421A-03K is a SPST toggle switch with 12mm bushing and screw terminals, manufactured by APEM. The switch features a metal lever and is suited for rugged and demanding applications.
SPST contacts On-Off function Screw terminals Front panel sealing Rating: 6.5A 30VDC Panel cut-out: 12.2mm Panel thickness: 5mm max Terminals: silver
Specification
| Actuation | Latching |
| Back order lead time | 10 Days |
| Contact configuration | SPST |
| Contact material | Silver |
| Contact rating | 6.5A 30VDC |
| Current rating | 6.5A |
| Electrical life | 10,000 Cycles |
| Illuminated | No |
| Mounting style | Panel |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating temperature | -40°C to +85°C |
| Panel cut out | 12.2mm |
| Product series | 6000 |
| Switch operation | On-Off |
| Terminal type | Screw |
| Voltage rating | 30VDC |
