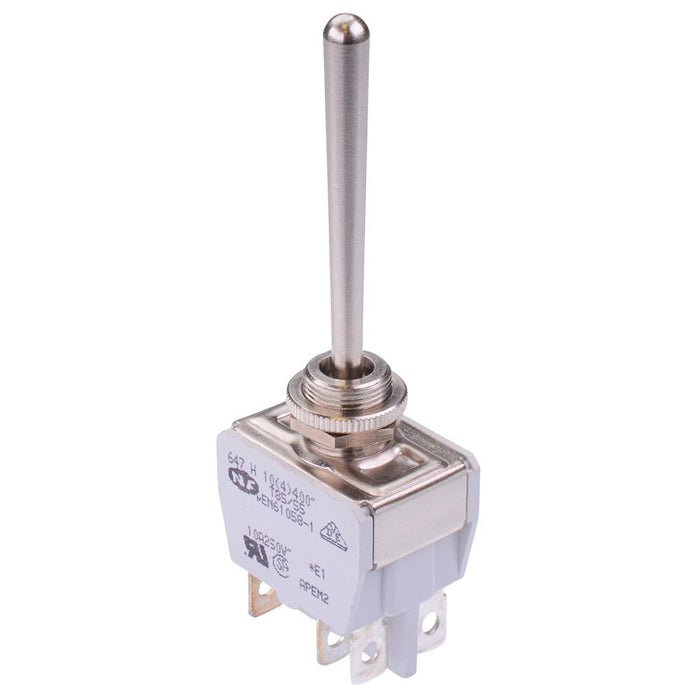

647H/2 APEM (On)-Off-(On) Momentary 12mm Toggle Switch DPDT 15A
by APEM
SKU 487787
MPN: 647H/2X2121
Availability:
13 in stock
Original price
£7.97
-
Original price
£7.97
Original price
£7.97
Inc VAT
£7.97
-
£7.97
Current price
£7.97
Inc VAT
The 647H/2 is a momentary DPDT toggle switch with 12mm bushing and quick connect terminals, manufactured by APEM. The switch features a metal lever and robust mechanim, suitable for industrial applications with a high amperage.
DPDT contacts (On)-Off-(On) function Quick connect terminals Rating: 15A 250VAC Panel cut-out: 12.2mm Panel thickness: 4.5mm max Terminals: silver/nickel alloy
Specification
| Actuation | Momentary |
| Back order lead time | 10 Days |
| Contact configuration | DPDT |
| Contact material | Silver / Nickel Alloy |
| Contact rating | 12A 250VAC |
| Current rating | 15A |
| Electrical life | 10,000 Cycles |
| Illuminated | No |
| Mounting style | Panel |
| Number of poles | 2 |
| Number of positions | 3 |
| Operating temperature | -20°C to +55°C |
| Panel cut out | 12.2mm |
| Product series | 600 |
| Switch operation | (On)-Off-(On) |
| Terminal type | Quick Connect |
| Voltage rating | 250VAC / 24VDC |
