6641-03KB2V APEM On-Off Locking 12mm Toggle Switch DPST 6.5A
by APEM
SKU 488159
MPN: 6641-03KB2V
Back Order Availability: 10 Days
Availability:
Only 2 left!
Original price
£39.51
-
Original price
£39.51
Original price
£39.51
Inc VAT
£39.51
-
£39.51
Current price
£39.51
Inc VAT

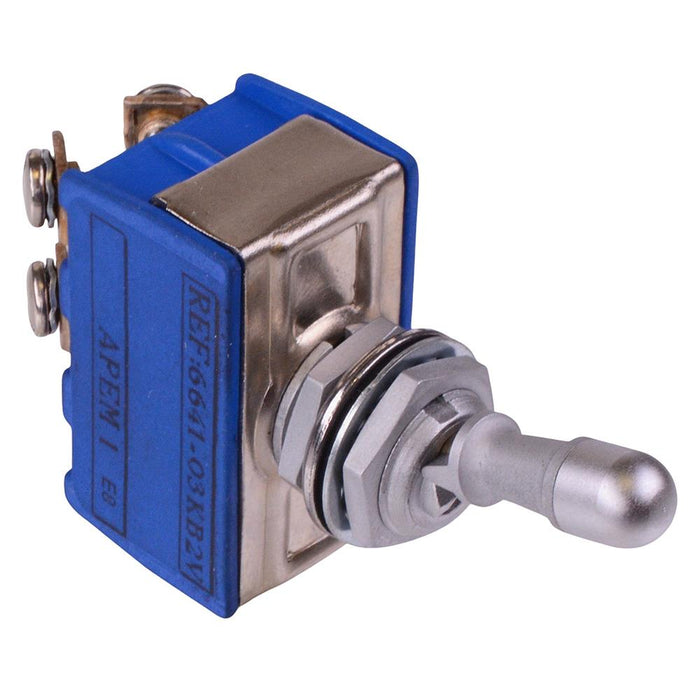

The 6641-03KB2V is a DPST toggle switch with 12mm bushing and screw terminals, manufactured by APEM. The switch features a locking metal lever and is suited for rugged and demanding applications.
DPST contacts On-Off function Locking lever in both positions Screw terminals Front panel sealing Rating: 6.5A 30VDC Panel cut-out: 12.2mm Panel thickness: 5mm max Terminals: silver
Specification
| Actuation | Latching |
| Back order lead time | 10 Days |
| Contact configuration | DPST |
| Contact material | Silver |
| Contact rating | 6.5A 30VDC |
| Current rating | 6.5A |
| Electrical life | 10,000 Cycles |
| Illuminated | No |
| Mounting style | Panel |
| Number of poles | 2 |
| Number of positions | 2 |
| Operating temperature | -40°C to +85°C |
| Panel cut out | 12.2mm |
| Product series | 6000 |
| Switch operation | On-Off |
| Terminal type | Screw |
| Voltage rating | 30VDC |
