6643-03 APEM Black Off-(On) Momentary 12mm Toggle Switch DPST 6.5A
by APEM
SKU 487833
MPN: 6643-03
Availability:
Only 5 left!
Original price
£36.41
-
Original price
£36.41
Original price
£36.41
Inc VAT
£36.41
-
£36.41
Current price
£36.41
Inc VAT

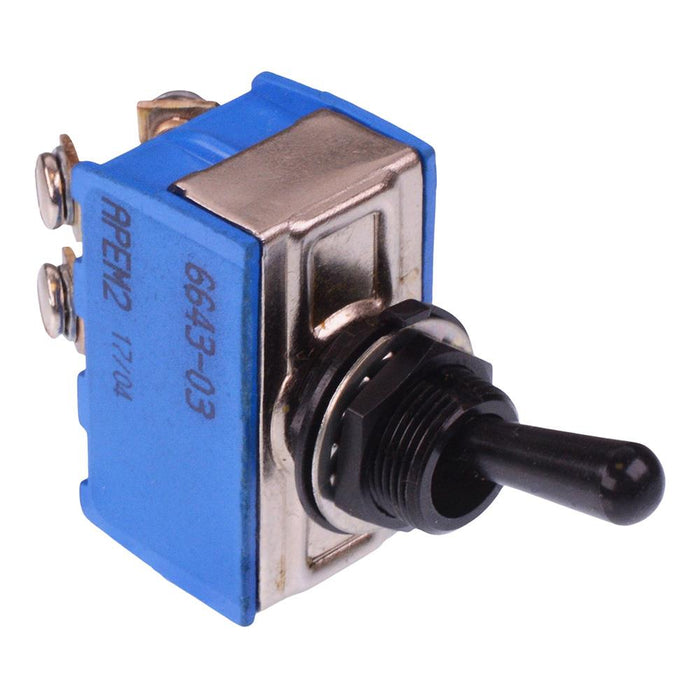

The 6643-03 is a DPST momentary toggle switch with 12mm bushing and screw terminals, manufactured by APEM. The switch features a black metal lever and is suited for rugged and demanding applications.
DPST contacts Off-(On) momentary function Screw terminals Rating: 6.5A 30VDC Panel cut-out: 12.2mm Panel thickness: 5mm max Terminals: silver
Specification
| Actuation | Momentary |
| Back order lead time | 10 Days |
| Contact configuration | DPST |
| Contact material | Silver |
| Contact rating | 6.5A 30VDC |
| Current rating | 6.5A |
| Electrical life | 10,000 Cycles |
| Illuminated | No |
| Mounting style | Panel |
| Number of poles | 2 |
| Number of positions | 2 |
| Operating temperature | -40°C to +85°C |
| Panel cut out | 12.2mm |
| Product series | 6000 |
| Switch operation | Off-(On) |
| Terminal type | Screw |
| Voltage rating | 30VDC |
