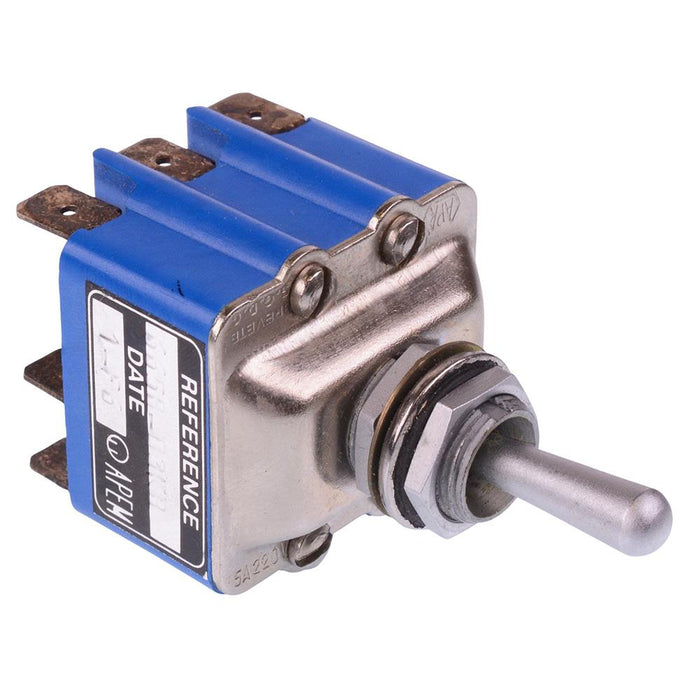

6658-03BK/3 APEM Black On-Off-(On) Momentary 12mm Toggle Switch 3PDT 6.5A

SKU 488162

MPN: 6658-03 BK/3

Only 2 left!
Original price £42.01 - Original price £42.01
Original price
£42.01 Inc VAT
£42.01 - £42.01
Current price £42.01 Inc VAT
The 6658-03BK/3 is a 3PDT momentary toggle switch with 12mm bushing and quick connect terminals, manufactured by APEM. The switch features a grey satin chrome metal lever and is suited for rugged and demanding applications.

  • 3PDT contacts
  • On-Off-(On) momentary function
  • Quick connect terminals
  • Front panel sealing
  • Rating: 6.5A 30VDC
  • Panel cut-out: 12.2mm
  • Panel thickness: 5mm max
  • Terminals: silver
  • Specification
    Actuation Latching / Momentary
    Back order lead time 10 Days
    Contact configuration 3PDT
    Contact material Silver
    Contact rating 6.5A 30VDC
    Current rating 6.5A
    Electrical life 10,000 Cycles
    Illuminated No
    Mounting style Panel
    Number of poles 3
    Number of positions 3
    Operating temperature -40°C to +85°C
    Panel cut out 12.2mm
    Product series 6000
    Switch operation On-Off-(On)
    Terminal type Quick Connect
    Voltage rating 30VDC
