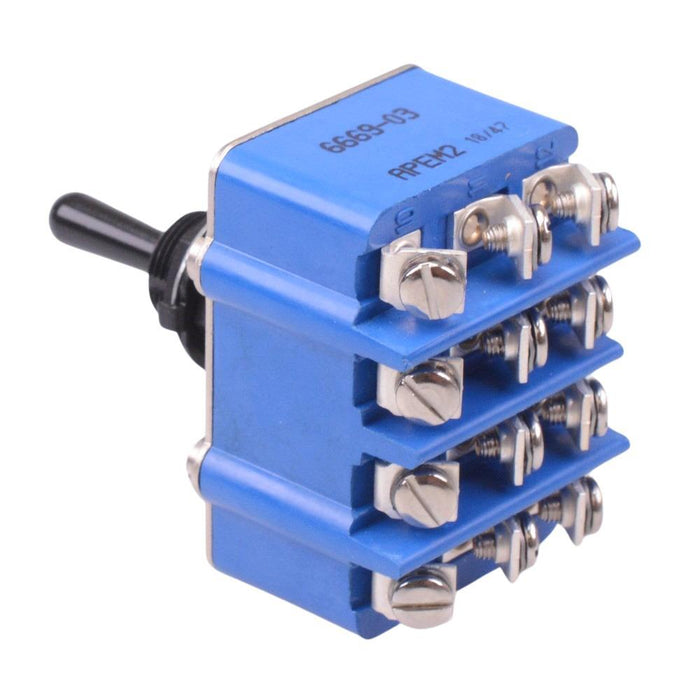

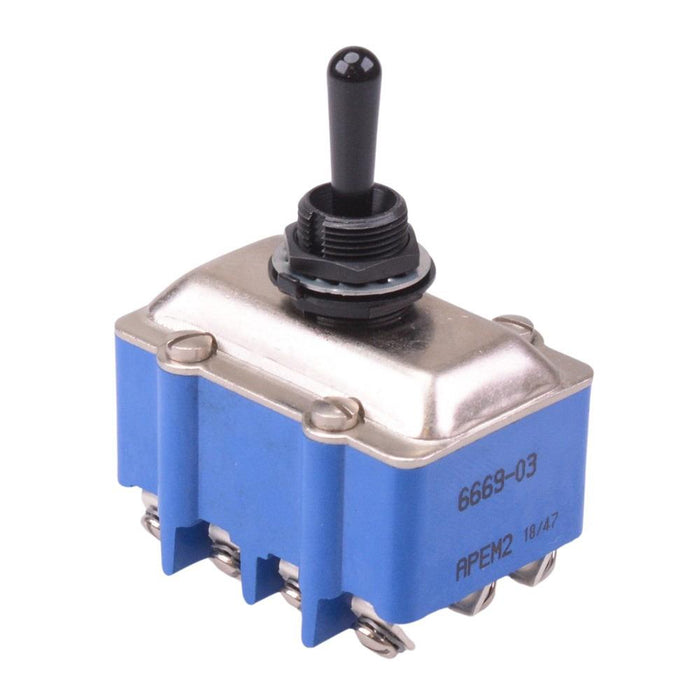

6669-03 APEM Black On-Off-On 12mm Toggle Switch 4PDT 6.5A
by APEM
SKU 489888
MPN: 6669-03
Availability:
99 in stock
Original price
£106.56
-
Original price
£106.56
Original price
£106.56
£106.56
-
£106.56
Current price
£106.56
The 6659-03 is a high amperage On-Off-On toggle switch featuring a robust mechanism and 4PDT contacts. The switch features screw terminals and are popular for a wide range of applications including automotive due to there reliability and rugged design.
On-Off-On operation 4PDT contacts Screw terminals Rating: 6.5A 30VDC Panel cut-out: 12.2mm Maximum panel thickness: 5mm
Specification
| Actuation | Latching |
| Contact Configuration | 4PDT |
| Contact Material | Silver |
| Contact Rating | 6.5A 30VDC |
| Current Rating | 6.5A |
| Electrical Life | 10,000 Cycles |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 4 |
| Number of Positions | 3 |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 12.2mm |
| Panel Thickness | 5mm |
| Product Series | 6000 |
| Switch Operation | On-Off-On |
| Terminal Type | Screw |
| Voltage Rating | 30VDC |
