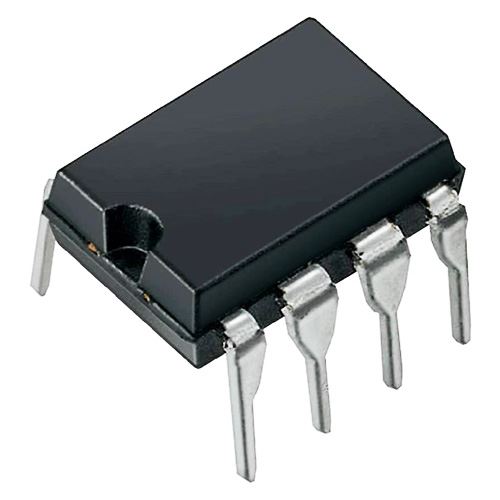

6N139 1-Channel Darlington Output Optocoupler DIP-8
by LITEON
SKU 480040
MPN: 6N139
Back Order Availability: 5 Days
Availability:
18 in stock, ready to be shipped
Original price
£0.87
-
Original price
£0.87
Original price
£0.87
Inc VAT
£0.87
-
£0.87
Current price
£0.87
Inc VAT
The 6N139 is a high gain series coupler using a light emitting diode and an integrated high gain photo detector providing extremely high current transfer ratio between input and output. Separate pins for the photodiode and output stage result in TTL compatible saturation voltage and high speed operation. Where desired the Vcc and Vo terminals may be tied together to achieve conventional photo darlington operation. A base access terminal allows a gain bandwidth adjustment to be made.
High current transfer ratio: 300-1600% @ 1.6mA Low input current requirements: 0.5mA High output current: 60mA TTL compatible output 8-pin DIP package
Specification
| Back order lead time | 5 Days |
| Current transfer ratio | 300-1600%@1.6mA |
| Forward current | 20mA |
| Isolation voltage | 2500V |
| Number of channels | 1 |
| Number of pins | 8 |
