6PDT Changeover Push Button Latching Switch
SKU 120025
MPN: 120025
Availability:
589 in stock
Original price
£0.41
-
Original price
£0.41
Original price
£0.41
Inc VAT
£0.41
-
£0.41
Current price
£0.41
Inc VAT

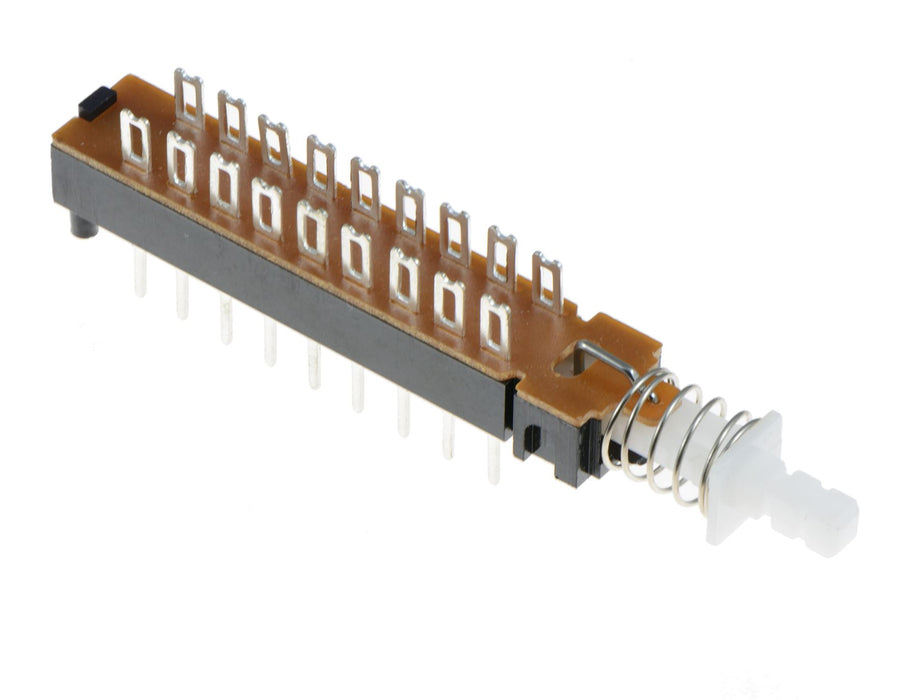

Latching push button switch with 6PDT contacts. The switch has PCB terminals underneath and solder terminals on the top, making them suitable for a wide range of applications.
6PDT contacts PCB terminals underneath and solder terminals on the top 3.3 x 3.3mm square button size Dimensions: 67 x 17.5 x 9mm (Length x Height x Width)
Specification
| Actuation | Latching |
| Back order lead time | 30 Days |
| Contact configuration | 6PDT |
| Contact rating | 0.3A 30VDC |
| Current rating | 0.3A |
| Illuminated | No |
| Illumination colour | Non Illuminated |
| Mounting style | PCB |
| Number of positions | 2 |
| Operating force | 250gf |
| Operating temperature | -20°C to +85°C |
| Terminal type | Through Hole |
| Voltage rating | 30VDC |
