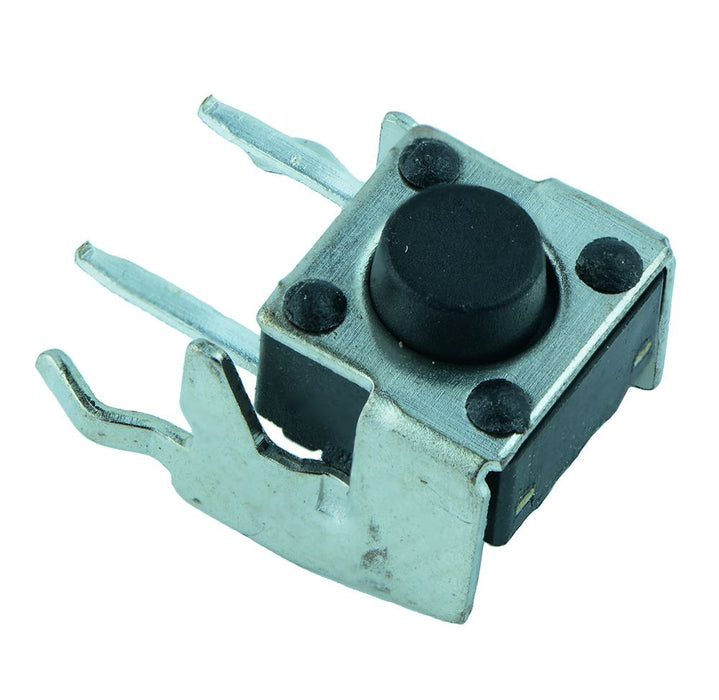

6x6mm Right Angle Momentary PCB Tactile Switch 5.0mm
SKU 122036
MPN: 122036
Availability:
1800 in stock
Original price
£0.19
-
Original price
£0.19
Original price
£0.19
£0.19
£0.19
-
£0.19
Current price
£0.19
Miniature tactile switches in standard 6 x 6mm size suitable for horizontal PCB mounting.
5mm height SPST normally open contacts Positive click action 4 terminal mounting
Specification
| Actuation | Momentary |
| Back Order Lead Time | 150 |
| Contact Configuration | SPST |
| Contact Rating | 50mA 12VDC |
| Current Rating | 50mA |
| Electrical Life | 100,000 Cycles |
| Height | 5mm |
| MOQ | 10 |
| Mounting Style | PCB |
| Number of Positions | 2 |
| Operating Force | 180gf |
| Operating Temperature | -20°C to +70°C |
| Switch Operation | Off-(On) |
| Terminal Type | Through Hole |
| Voltage Rating | 12VDC |
