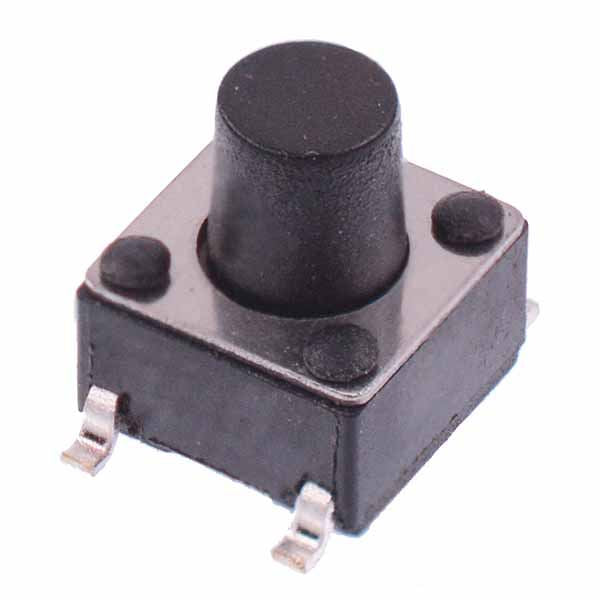

6x6x7mm SMT Momentary PCB Tactile Switch
SKU 483116
MPN: 483116
Availability:
1975 in stock
Original price
£0.16
-
Original price
£0.16
Original price
£0.16
£0.16
£0.16
-
£0.16
Current price
£0.16
7mm height miniature tactile switch housed in a standard 6 x 6mm package suitable for PCB mounting.
7mm height SPST normally open contacts Positive click action 4 terminal mounting Rating: 50mA 12VDC 180gf operating force
Specification
| Actuation | Momentary |
| Back Order Lead Time | 30 Days |
| Contact Configuration | SPST |
| Contact Rating | 50mA 12VDC |
| Current Rating | 50mA |
| Electrical Life | 100,000 Cycles |
| Height | 7mm |
| MOQ | 10 |
| Mounting Style | PCB |
| Number of Positions | 2 |
| Operating Force | 180gf |
| Operating Temperature | -20°C to +70°C |
| Switch Operation | Off-(On) |
| Terminal Type | Through Hole |
| Voltage Rating | 12VDC |
