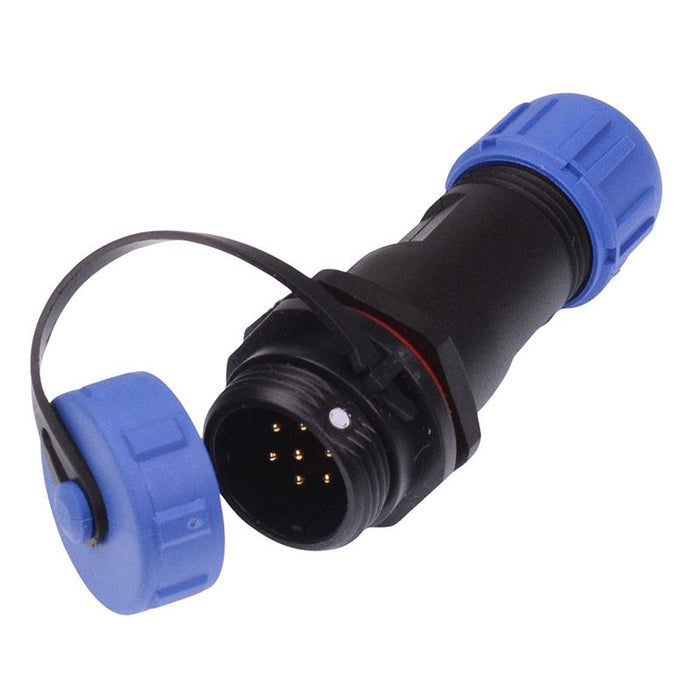

7 Pin Waterproof Male Socket Cable Connector IP68

SKU 485019

MPN: 485019

168 in stock
Original price £4.11 - Original price £4.11
Original price
£4.11 Inc VAT
£4.11 - £4.11
Current price £4.11 Inc VAT
7 way male socket featuring IP68 protection rating suitable for applications requiring a waterproof and rugged connector.

  • Outer cable diameter: 4-6.5mm
  • Protection level: IP68
  • Rating: 5A 125V
  • Solder termination
  • Rated for 500 mating cycles
  • Dimensions: 48 x 19.5mm (length x diameter)
  • Specification
    Back order lead time 30 Days
    Contact material Gold Plated Brass
    Current rating 5A
    Gender Male
    Housing material PA66
    Mounting type Cable Mount
    Number of ways 7
    Operating temperature -25°C to +80°C
    Protection level IP68
    Termination method Solder
    Thread size W13
    Voltage rating 125V
    Wire range 4-6.5mm Diameter
