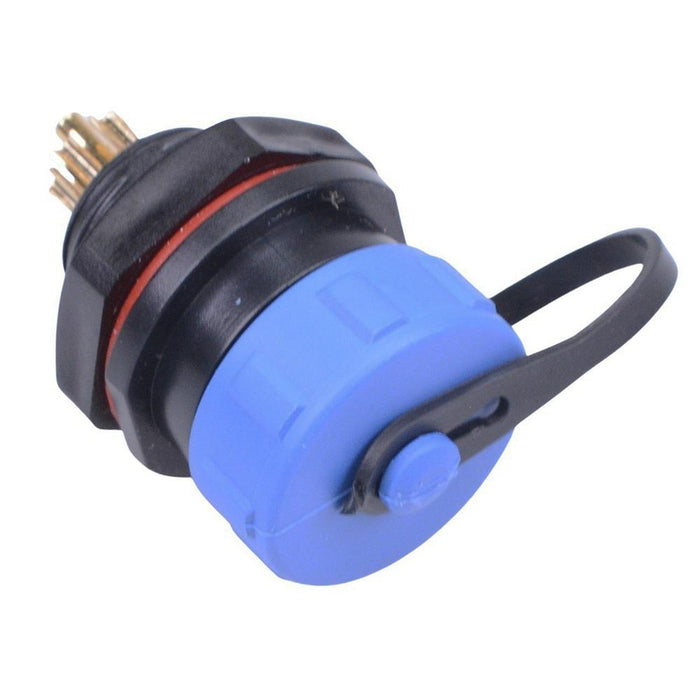

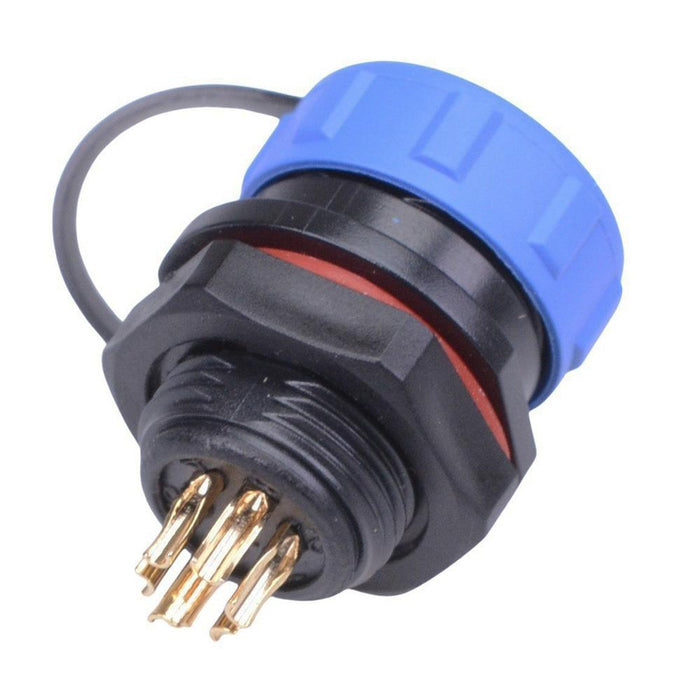

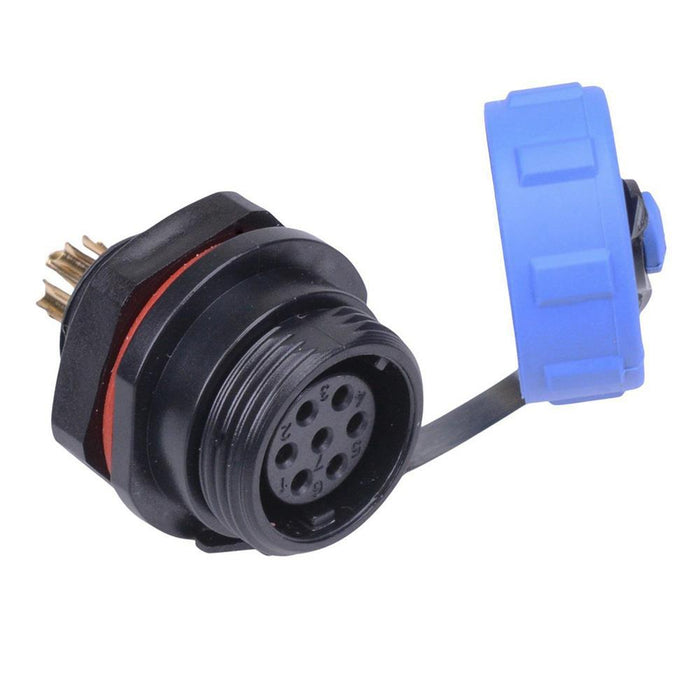

7 Pin Waterproof W13 Female Socket Panel Mount Connector IP68
SKU 490936
MPN: SE-W13A2-07
Availability:
90 in stock
Original price
£2.97
-
Original price
£2.97
Original price
£2.97
£3.12
£3.12
-
£3.12
Current price
£3.12
7 way female circular socket featuring IP68 protection rating and solder terminals. The connector features a compact design, suitable for panel mount applications requiring a waterproof rugged connector.
Outer cable diameter: 4-6.5mm Protection level: IP68 Rating: 5A 125V Panel cut-out: 13.0mm Solder termination Rated for 500 mating cycles Dimensions: 24.4 x 20.0mm (length x diameter)
Specification
| Back Order Lead Time | 30 Days |
| Contact Material | Gold Plated Brass |
| Current Rating | 5A |
| Gender | Female |
| Housing Material | PPO, PA66 |
| MOQ | 1 |
| Mounting Type | Panel |
| Number of Ways | 7 |
| Operating Temperature | -25°C to +80°C |
| Panel Cut Out | 13mm |
| Panel Thickness | 3mm Max |
| Protection Level | IP68 |
| Termination Method | Solder |
| Thread Size | W13 |
| Voltage Rating | 125V |
| Wire Range | ≤18AWG |
