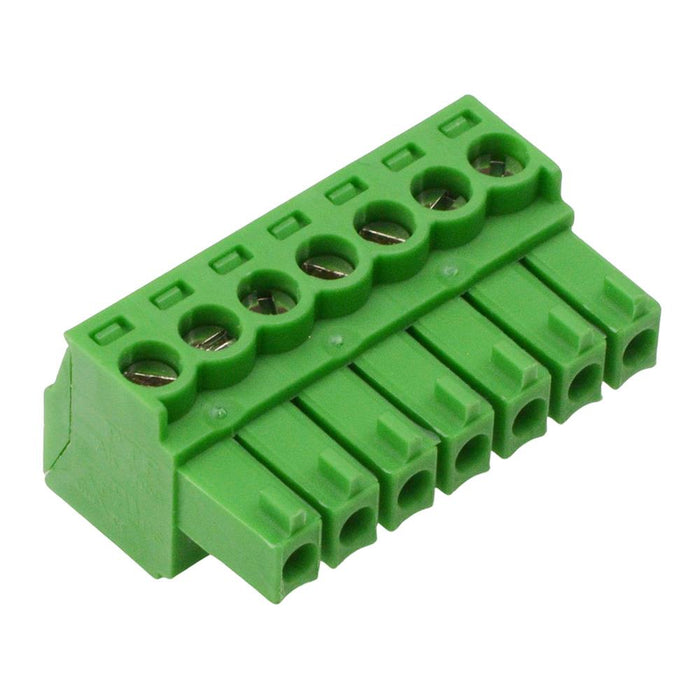

7-Way 3.5mm Right Angle Pluggable Terminal Block Green 8A 300V
by PTR HARTMANN
SKU 488102
MPN: AK1550/07-3.5-GREEN
Availability:
82 in stock
Original price
£0.98
-
Original price
£0.98
Original price
£0.98
£0.98
£0.98
-
£0.98
Current price
£0.98
7 pole pluggable terminal block manufactured by PTR HARTMANN, featuring a 3.5mm pitch and parallel wire entry. The terminal blocks are rated up to 8A, making them suitable for a wide range of PCB applications.
- 7 pole
- 3.5mm pitch
- Right angle
- Material: PA66
- Rating: 8A 300V
- Wire size: 28-16AWG
Specification
| Back Order Lead Time | 120 |
| Colour | Green |
| Contact Material | Brass |
| Current Rating | 8A |
| Housing Material | PA66 |
| MOQ | 1 |
| Mounting Type | Cable Mount |
| Number of Ways | 7 |
| Operating Temperature | -40°C to +105°C |
| Pitch | 3.5mm |
| Termination Method | Screw |
| Voltage Rating | 300VAC |
| Wire Range | 28-16AWG |
