7036YCDB Black Paddle On-On PCB Rocker Switch SPDT 0.4A 20V
by APEM
SKU 487742
MPN: 7036YCDB+U702
Availability:
Out of stock
Sold out
Original price
£3.75
-
Original price
£3.75
Original price
£3.75
£3.75
-
£3.75
Current price
£3.75

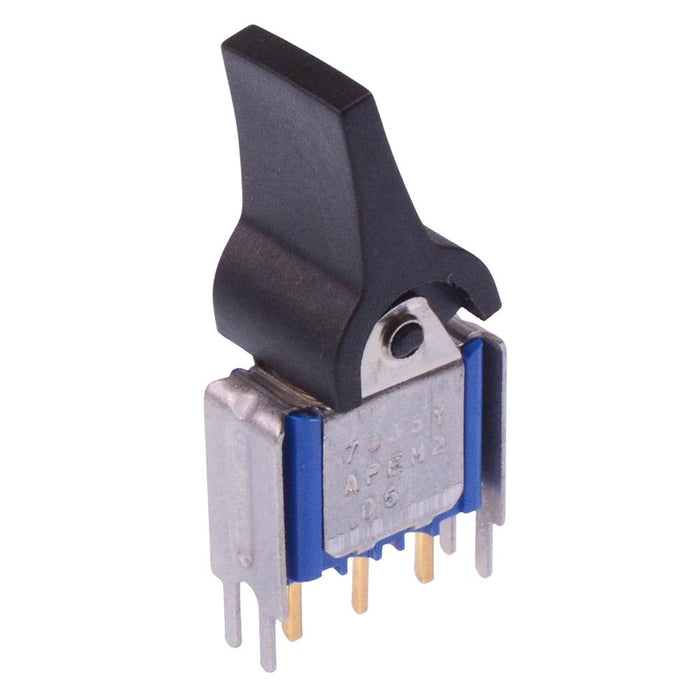

The 7032YCDB is a black paddle PCB rocker switch with a bracket mount and SPDT contacts, suitable for PCB mounting applications.
Black broad paddle U702 SPDT contacts On-On operation Bracket mounting PCB terminals Epoxy sealed terminals Gold plated brass contacts Rating: 0.4A 20VAC/DC 4.7mm terminal pitch
Specification
| Actuation | Latching |
| Back Order Lead Time | 10 Days |
| Colour | Black |
| Contact Configuration | SPDT |
| Contact Material | Gold Plated Brass |
| Contact Rating | 0.4A 20VAC/DC |
| Current Rating | 0.4A |
| Electrical Life | 50,000 Cycles |
| Illuminated | No |
| Mounting Style | PCB |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -40°C to +85°C |
| Pitch | 4.7mm |
| Switch Operation | On-On |
| Terminal Type | PCB |
| Voltage Rating | 20VAC/DC |
