7037Y6ADB Black Paddle (On)-Off-(On) Momentary PCB Rocker Switch SPDT 4A 30VDC
by APEM
SKU 487908
MPN: 7037Y6ADB+U612
Availability:
16 in stock
Original price
£6.75
-
Original price
£6.75
Original price
£6.75
£7.66
£7.66
-
£7.66
Current price
£7.66

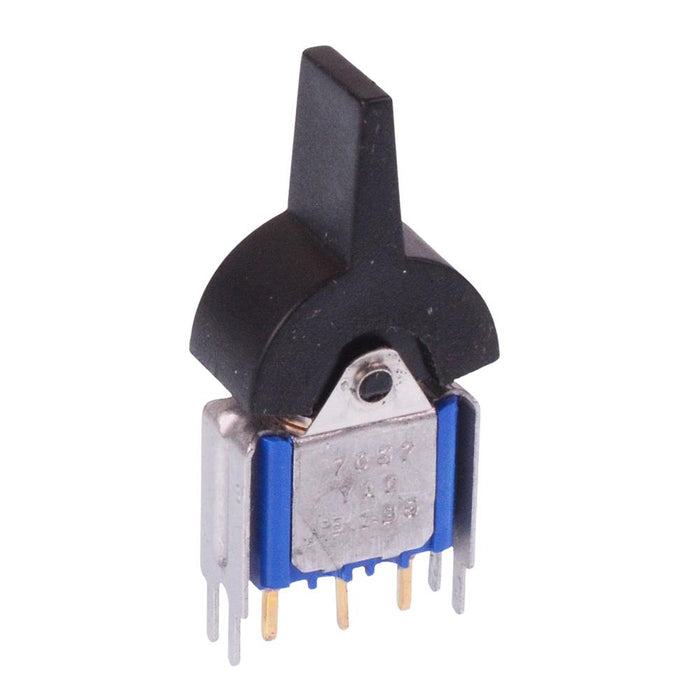

The 7037Y6ADB is a black paddle PCB rocker switch with a bracket mount and SPDT contacts, suitable for PCB mounting applications.
Black narrow paddle U612 SPDT contacts (On)-Off-(On) momentary operation Bracket mounting PCB terminals Epoxy sealed terminals Gold plated silver contacts Rating: 4A 30VDC 4.7mm terminal pitch
Specification
| Actuation | Momentary |
| Back Order Lead Time | 10 Days |
| Colour | Black |
| Contact Configuration | SPDT |
| Contact Material | Gold Plated Silver |
| Contact Rating | 4A 30VDC |
| Current Rating | 4A |
| Electrical Life | 50,000 Cycles |
| Illuminated | No |
| Mounting Style | PCB |
| Number of Poles | 1 |
| Number of Positions | 3 |
| Operating Temperature | -40°C to +85°C |
| Pitch | 4.7mm |
| Switch Operation | (On)-Off-(On) |
| Terminal Type | PCB |
| Voltage Rating | 30VDC |
