7638AD Red Paddle On-Off-(On) Momentary Snap-In Rocker Switch SPDT 4A 30VDC APEM
by APEM
SKU 489894
MPN: 7638AD+U1202+U706
Availability:
69 in stock
Original price
£6.38
-
Original price
£6.38
Original price
£6.38
£6.38
£6.38
-
£6.38
Current price
£6.38

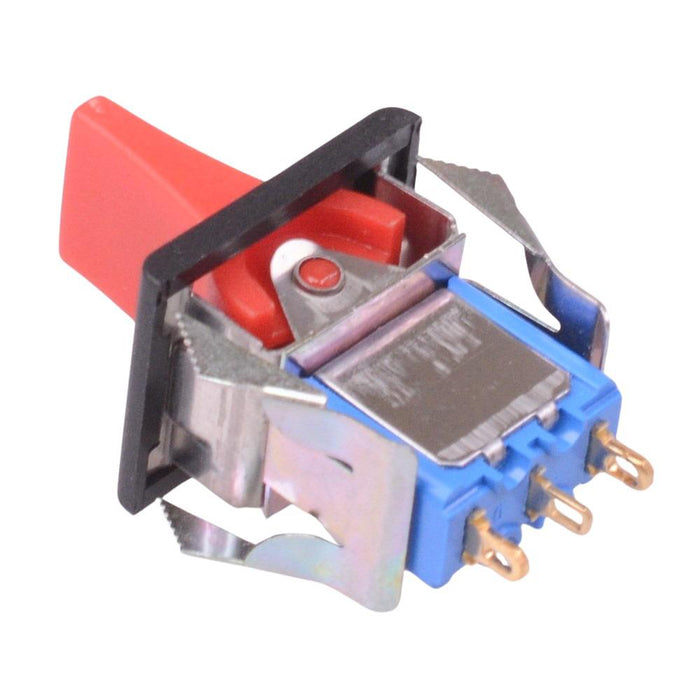

The 7638AD is a red paddle snap-in rocker switch manufactured by APEM, featuring momentary SPDT contacts, suitable for panel mounting applications.
Red broad paddle U706 SPDT contacts (On)-Off-(On) momentary operation Solder lug terminals Gold plated silver contacts Panel thickness: 1 to 2.5mm Panel cut-out: 15 x 12.5mm Rating: 4A 30VDC 4.7mm terminal pitch
Specification
| Actuation | Latching / Momentary |
| Colour | Red |
| Contact Configuration | SPDT |
| Contact Material | Gold Plated Silver |
| Contact Rating | 4A 30VDC |
| Current Rating | 4A |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 3 |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 15 x 12.5mm |
| Panel Thickness | 1-2.5mm |
| Switch Operation | On-Off-(On) |
| Terminal Type | Solder |
| Voltage Rating | 30VDC |
