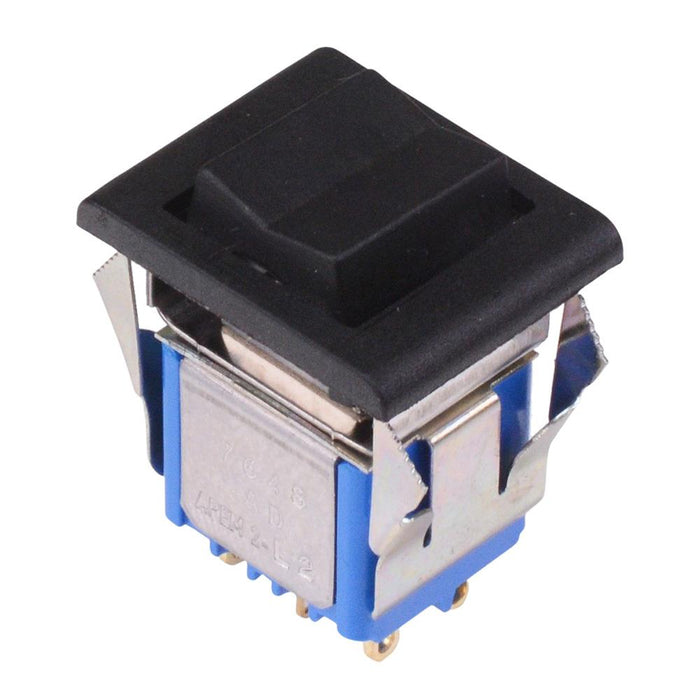

7648AD Black On-Off-(On) Momentary Snap-In Rocker Switch DPDT 4A 30VDC
by APEM
SKU 487773
MPN: 7648AD+U1202+U732
Availability:
55 in stock
Original price
£8.58
-
Original price
£8.58
Original price
£8.58
Inc VAT
£8.58
-
£8.58
Current price
£8.58
Inc VAT
The 7648AD is a black snap-in rocker switch featuring DPDT contacts, suitable for panel mounting applications.
Black rocker actuator U732 DPDT contacts On-Off-(On) momentary operation Solder lug terminals Gold plated silver contacts Panel thickness: 1 to 2.5mm Panel cut-out: 15 x 12.5mm Rating: 4A 30VDC 4.7mm terminal pitch
Specification
| Actuation | Latching / Momentary |
| Back order lead time | 10 Days |
| Colour | Black |
| Contact configuration | DPDT |
| Contact material | Gold Plated Silver |
| Contact rating | 4A 30VDC |
| Current rating | 4A |
| Electrical life | 50,000 Cycles |
| Illuminated | No |
| Mounting style | Panel |
| Number of poles | 2 |
| Number of positions | 3 |
| Operating temperature | -40°C to +85°C |
| Panel cut out | 15 x 12.5mm |
| Panel thickness | 1-2.5mm |
| Pitch | 4.7mm |
| Switch operation | On-Off-(On) |
| Terminal type | Solder |
| Voltage rating | 30VDC |
