770-113 WAGO 3 Pole WINSTA MIDI Plug Strain Relief 25A

by Wago
SKU 489411

MPN: 770-113

98 in stock
Original price £4.49 - Original price £4.49
Original price
£4.49 Inc VAT
£4.49 - £4.49
Current price £4.49 Inc VAT

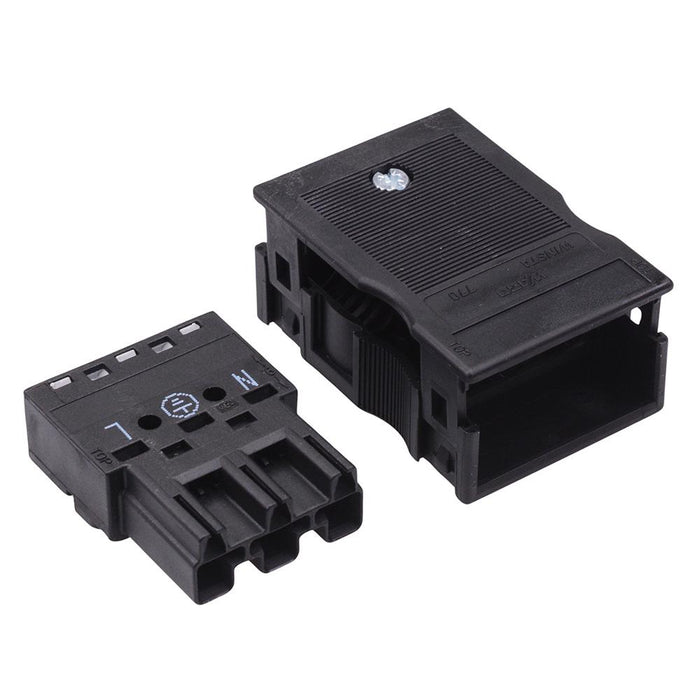

The 770-113 is a 3 pole plug with strain relief from the WAGO WINSTA series of connectors. The plug features A coding and is compatible with solid and stranded conductors up to 4mm². The connectors utilise Push-in CAGE CLAMP® technology providing a secure connection to the wire and fast installation. The current rating is 25A making it suitable for a wide range of applications including lighting, control cabinets and PCBs.

  • 3 poles
  • Push-in CAGE CLAMP® technology
  • Coding: A
  • Current rating: 25A
  • Nominal voltage: 250V
  • Rated surge voltage: 4kV
  • Wire size: 0.5-4mm² 20-12AWG
  • Wire strip length: 9mm
  • Pin spacing: 10mm
  • Width: 34.6mm
  • Height: 15mm
  • Depth: 76mm
  • Specification
    Back order lead time 5 Days
    Contact material Tin Plated Copper
    Contact pitch 10mm
    Current rating 25A
    Gender Male
    Housing material PA66
    Mounting type Cable
    Number of ways 3
    Operating temperature -35°C to +85°C
    Termination method Push-In
    Voltage rating 250V
    Wire range 0.5mm² to 4mm²
