7736NAB APEM Black On-On Panel Mount Rocker Switch SPDT 4A 30VDC
by APEM
SKU 488178
MPN: 7736NAB
Availability:
62 in stock
Original price
£3.91
-
Original price
£3.91
Original price
£3.91
£3.91
£3.91
-
£3.91
Current price
£3.91

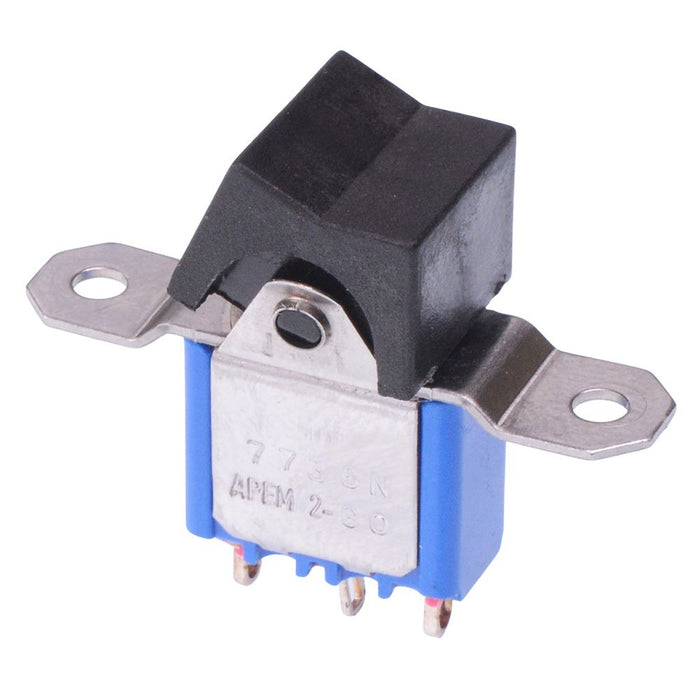

The 7736NAB is a rocker switch featuring SPDT contacts, suitable for panel mounting applications.
SPDT contacts On-On operation Solder lug terminals Mounting plate Silver contacts Epoxy sealed terminals Rating: 4A 30VDC 4.7mm terminal pitch
Specification
| Actuation | Latching |
| Back Order Lead Time | 10 Days |
| Contact Configuration | SPDT |
| Contact Material | Silver |
| Contact Rating | 4A 30VDC |
| Current Rating | 4A |
| Electrical Life | 50,000 Cycles |
| Illuminated | No |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -40°C to +85°C |
| Pitch | 4.7mm |
| Switch Operation | On-On |
| Terminal Type | Solder |
| Voltage Rating | 30VDC |
