7766NAB APEM Black On-On Panel Mount Rocker Switch 4PDT 4A 30VDC
by APEM
SKU 488190
MPN: 7766NAB
Availability:
11 in stock
Original price
£7.50
-
Original price
£7.50
Original price
£7.50
£7.50
£7.50
-
£7.50
Current price
£7.50

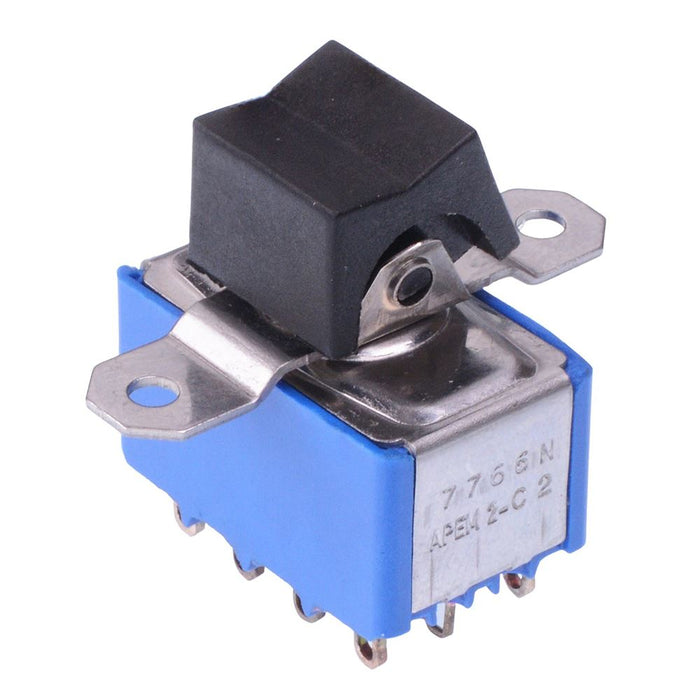

The 7766NAB is a rocker switch featuring 4PDT contacts, suitable for panel mounting applications.
4PDT contacts On-On operation Solder lug terminals Mounting plate Silver contacts Epoxy sealed terminals Rating: 4A 30VDC 4.7mm terminal pitch
Specification
| Actuation | Latching |
| Back Order Lead Time | 10 Days |
| Contact Configuration | 4PDT |
| Contact Material | Silver |
| Contact Rating | 4A 30VDC |
| Current Rating | 4A |
| Electrical Life | 50,000 Cycles |
| Illuminated | No |
| Mounting Style | Panel |
| Number of Poles | 4 |
| Number of Positions | 2 |
| Operating Temperature | -40°C to +85°C |
| Pitch | 4.7mm |
| Switch Operation | On-On |
| Terminal Type | Solder |
| Voltage Rating | 30VDC |
