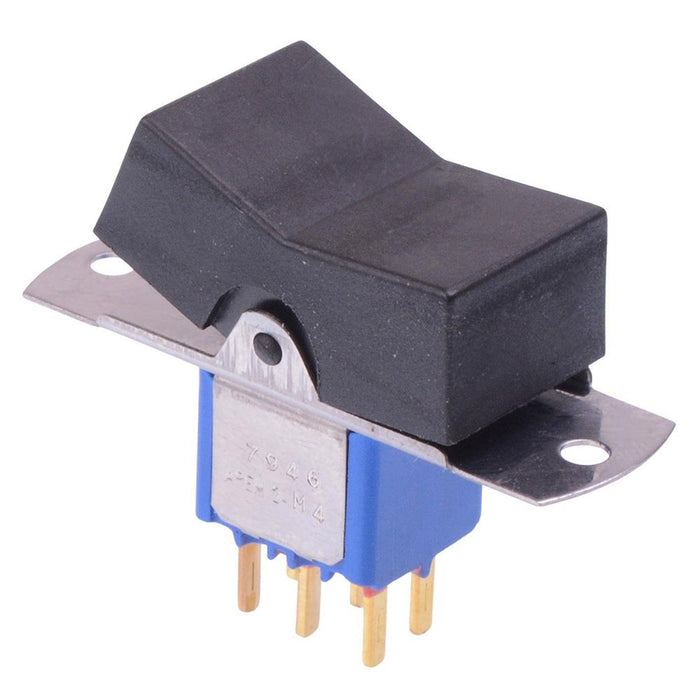

7946ZCD Black On-On Panel Mount PCB Rocker Switch DPDT 0.4A 20V

SKU 487230

MPN: 7946ZCD+U532

968 in stock
Original price £3.89 - Original price £3.89
Original price
£3.89 Inc VAT
£3.89 - £3.89
Current price £3.89 Inc VAT
The 7946ZCD is a black rocker switch featuring DPDT contacts, suitable for panel and PCB mounting applications.

  • Black large rocker U532
  • DPDT contacts
  • On-On operation
  • PCB terminals
  • Mounting bracket
  • Gold plated brass contacts
  • Rating: 0.4A 20VAC/DC
  • 4.7mm terminal pitch
  • Specification
    Actuation Latching
    Back order lead time 10 Days
    Colour Black
    Contact configuration DPDT
    Contact material Gold Plated Brass
    Contact rating 0.4A 20VAC/DC
    Current rating 0.4A
    Electrical life 50,000 Cycles
    Illuminated No
    Mounting style PCB
    Number of poles 2
    Number of positions 2
    Operating temperature -40°C to +85°C
    Pitch 4.7mm
    Switch operation On-On
    Terminal type PCB
    Voltage rating 20VAC/DC
