7948WCD Black On-Off-(On) Momentary Right Angle PCB Rocker Switch DPDT 0.4A 20V
by APEM
SKU 487804
MPN: 7948WCD+U622
Availability:
50 in stock
Original price
£3.96
-
Original price
£3.96
Original price
£3.96
Inc VAT
£3.96
-
£3.96
Current price
£3.96
Inc VAT

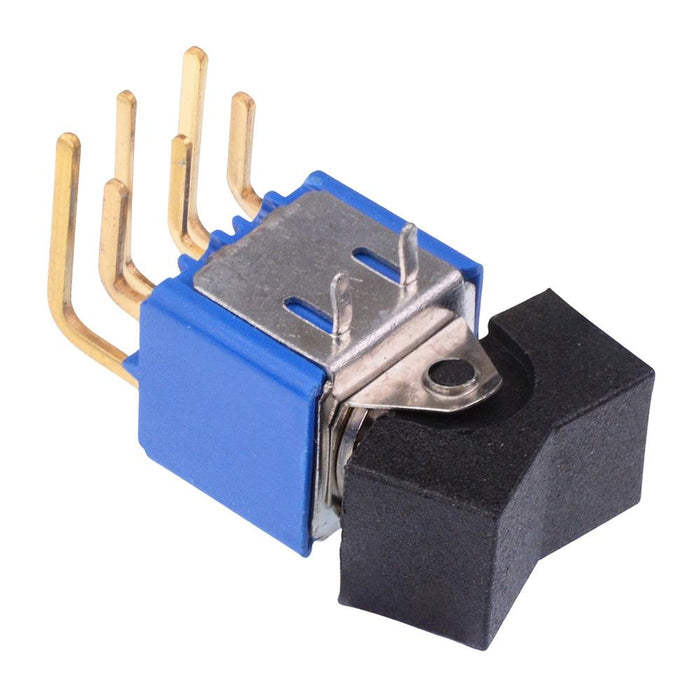

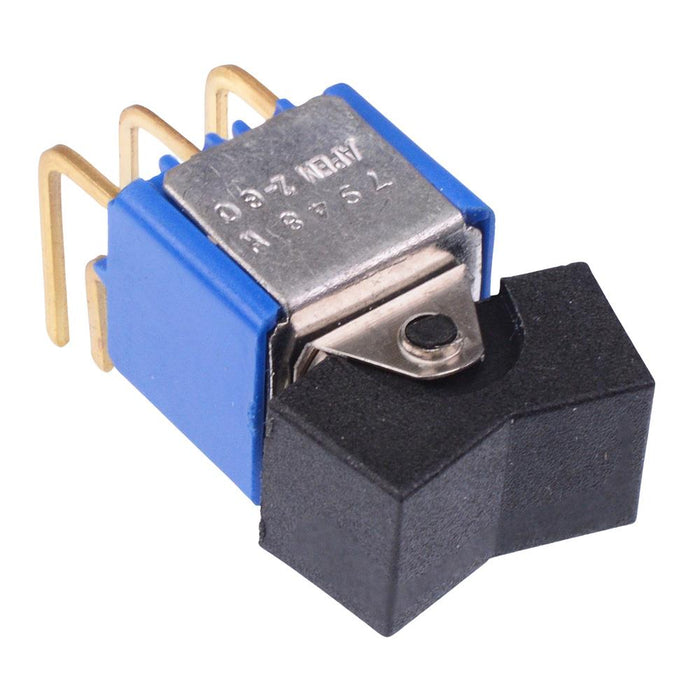

The 7948WCD is a black rocker switch featuring DPDT contacts, suitable for horizontal PCB mounting applications.
Black medium rocker U622 DPDT contacts On-Off-(On) momentary operation Right angle PCB terminals Gold plated brass contacts Rating: 0.4A 20VAC/DC 4.7mm terminal pitch
Specification
| Actuation | Latching / Momentary |
| Back order lead time | 10 Days |
| Colour | Black |
| Contact configuration | DPDT |
| Contact material | Gold Plated Brass |
| Contact rating | 0.4A 20VAC/DC |
| Current rating | 0.4A |
| Electrical life | 50,000 Cycles |
| Illuminated | No |
| Mounting style | PCB |
| Number of poles | 2 |
| Number of positions | 3 |
| Operating temperature | -40°C to +85°C |
| Pitch | 4.7mm |
| Switch operation | On-Off-(On) |
| Terminal type | PCB |
| Voltage rating | 20VAC/DC |
