8-20KΩ Photoresistor 150VDC

by Token
SKU 484924


90 in stock
Original price £1.14 - Original price £1.14
Original price
£1.14 Inc VAT
£1.14 - £1.14
Current price £1.14 Inc VAT

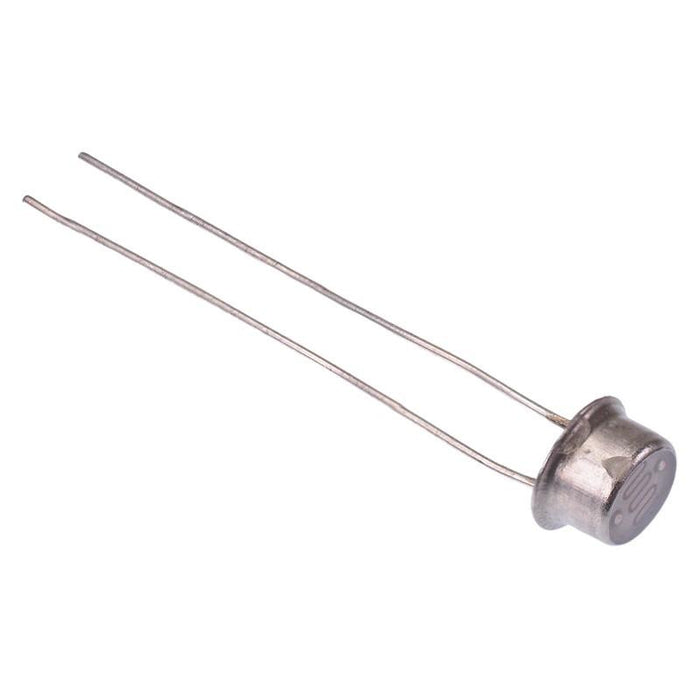

8-20K hermetically sealed photoresistor featuring a quick response and reliable performance. The photoresistor is suitable for applications including photoswitch, photoelectric control, auto flash for camera, electronic toys and industrial control.

  • Hermetically sealed
  • Maximum voltage: 150VDC
  • Resistance at 10 lux: 8-20KΩ
  • Dark resistance: 1MΩ min
  • Peak spectral: 540nm
  • Lead pitch: 3.4mm
  • Dimensions: 5.5 x 4mm (diameter x height)
  • Specification
    Back order lead time 5 Days
    Mounting style Through Hole
    Peak wavelength 540nm
    Power 100mW
    Resistance at 10lx 8-20k
    Supply voltage 150VDC
