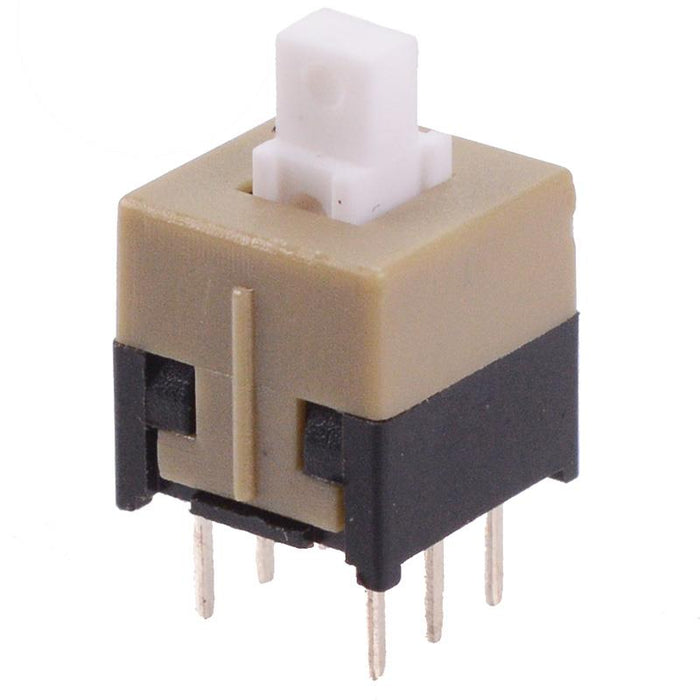

8.5x8.5mm Latching PCB Push Button Switch
SKU 482795
MPN: 482795
Availability:
Out of stock
Sold out
Original price
£0.35
-
Original price
£0.35
Original price
£0.35
£0.39
£0.39
-
£0.39
Current price
£0.39
Push button switch housed in a compact 8.5 x 8.5mm package featuring a latching mechanism and DPDT contacts, suitable for mounting to PCBs.
On-On action DPDT contacts PCB solder terminals 2.5mm pin pitch 3 x 2mm actuator Rating: 0.1A 30VDC Dimensions: 17.5 x 8.5 x 8.5mm (Height x Width x Length)
Specification
| Actuation | Latching |
| Back Order Lead Time | 40 Days |
| Contact Configuration | DPDT |
| Contact Rating | 0.1A 30VDC |
| Current Rating | 0.1A |
| Electrical Life | 10,000 Cycles |
| Illuminated | No |
| Illumination Colour | Non Illuminated |
| Mounting Style | PCB |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Operating Force | 200gf |
| Operating Temperature | -25°C to +70°C |
| Pitch | 2.5mm |
| Switch Operation | On-On |
| Terminal Type | Through Hole |
| Voltage Rating | 30VDC |
