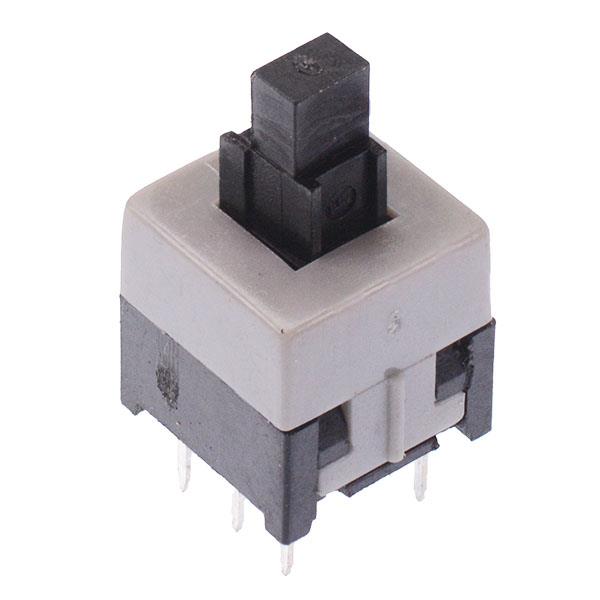

8.5x8.5mm Momentary PCB Push Button Switch
SKU 482796
MPN: 482796
Availability:
30 in stock
Original price
£0.29
-
Original price
£0.29
Original price
£0.29
Inc VAT
£0.29
-
£0.29
Current price
£0.29
Inc VAT
Push button switch housed in a compact 8.5 x 8.5mm package featuring a momentary mechanism and DPDT contacts, suitable for mounting to PCBs.
On-(On) action DPDT contacts PCB solder terminals 2.5mm pin pitch 3 x 2mm actuator Rating: 0.1A 30VDC Dimensions: 17.5 x 8.5 x 8.5mm (Height x Width x Length)
Specification
| Actuation | Momentary |
| Back order lead time | 40 Days |
| Contact configuration | DPDT |
| Contact rating | 0.1A 30VDC |
| Current rating | 0.1A |
| Electrical life | 10,000 Cycles |
| Illuminated | No |
| Illumination colour | Non Illuminated |
| Mounting style | PCB |
| Number of poles | 2 |
| Number of positions | 2 |
| Operating force | 200gf |
| Operating temperature | -25°C to +70°C |
| Pitch | 2.5mm |
| Switch operation | On-(On) |
| Terminal type | Through Hole |
| Voltage rating | 30VDC |
