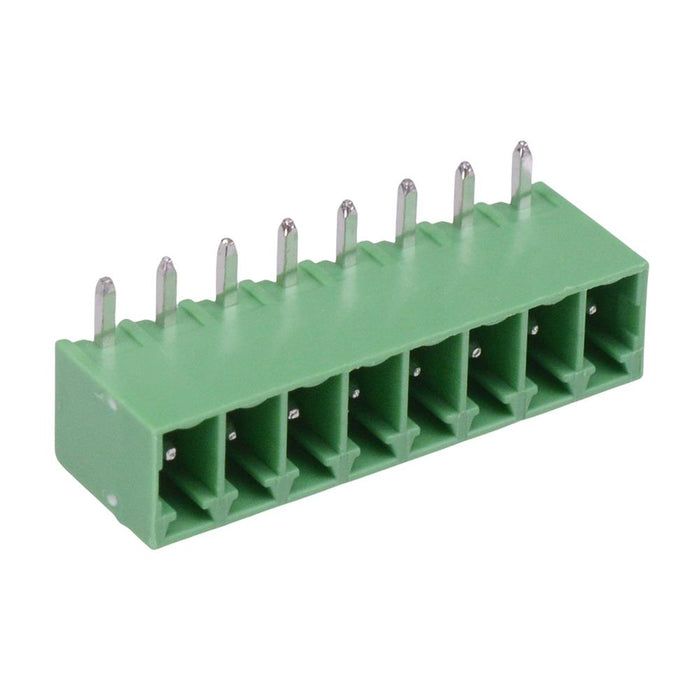

8-Way 3.5mm Horizontal PCB Header Closed Ends 8A 300V
by Degson
SKU 488705
MPN: 15EDGRC-3.5/8P
Availability:
80 in stock
Original price
£0.36
-
Original price
£0.36
Original price
£0.36
£0.38
£0.38
-
£0.38
Current price
£0.38
8 pole PCB header manufactured by Degson, featuring a 3.5mm pitch and horizontal orientation. The headers are rated up to 8A, making them suitable for mating with 3.5mm pluggable terminal blocks.
8 pole 3.5mm pitch Horizontal orientation Closed ends Material: PA66 PCB hole diameter: 1.4mm Rating: 8A 300V
Specification
| Back Order Lead Time | 150 Days |
| Current Rating | 8A |
| Housing Material | PA66 |
| MOQ | 1 |
| Mounting Type | PCB Mount |
| Number of Ways | 8 |
| Operating Temperature | -40°C to +105°C |
| Pitch | 3.5mm |
| Termination Method | Through Hole |
| Voltage Rating | 300V |
