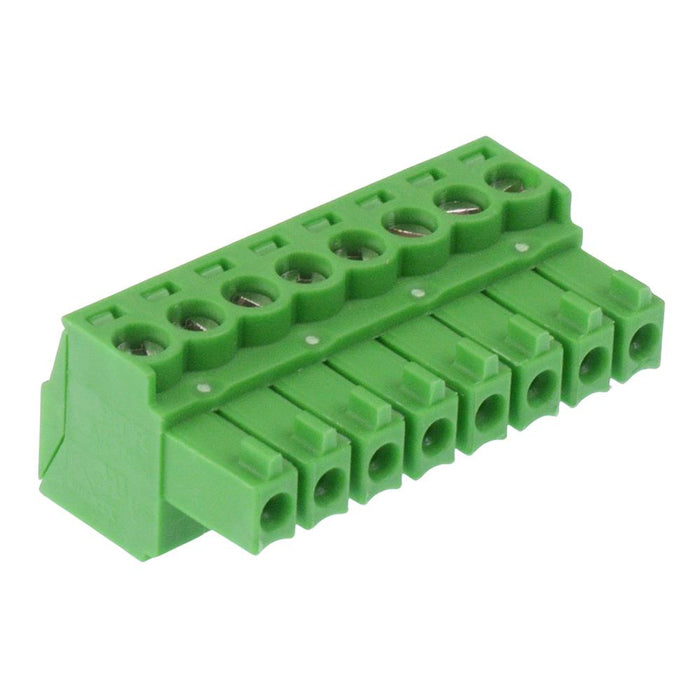

8-Way 3.5mm Right Angle Pluggable Terminal Block Green 8A 300V

SKU 487657

MPN: AK1550/08-3,5-GREEN

241 in stock
Original price £1.50 - Original price £1.50
Original price
£1.50 Inc VAT
£1.50 - £1.50
Current price £1.50 Inc VAT
8 pole pluggable terminal block manufactured by PTR HARTMANN, featuring a 3.5mm pitch and parallel wire entry. The terminal blocks are rated up to 8A, making them suitable for a wide range of PCB applications.

  • 8 pole
  • 3.81mm pitch
  • Right angle
  • Material: PA66
  • Rating: 8A 300V
  • Wire size: 28-16AWG
  • Specification
    Back order lead time 10 Days
    Colour Green
    Contact material Brass
    Current rating 8A
    Housing material PA66
    Mounting type Cable Mount
    Number of ways 8
    Operating temperature -40°C to +105°C
    Pitch 3.50mm
    Termination method Screw
    Voltage rating 300VAC
    Wire range 28-16AWG
