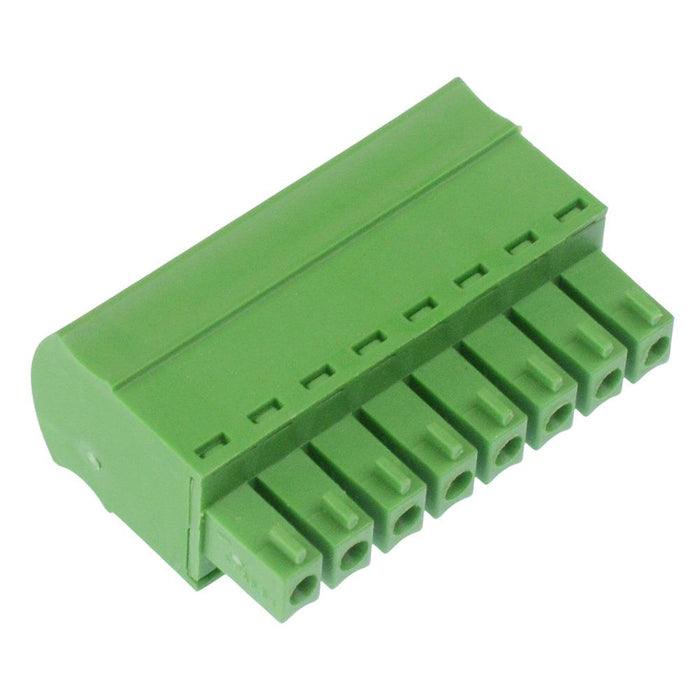

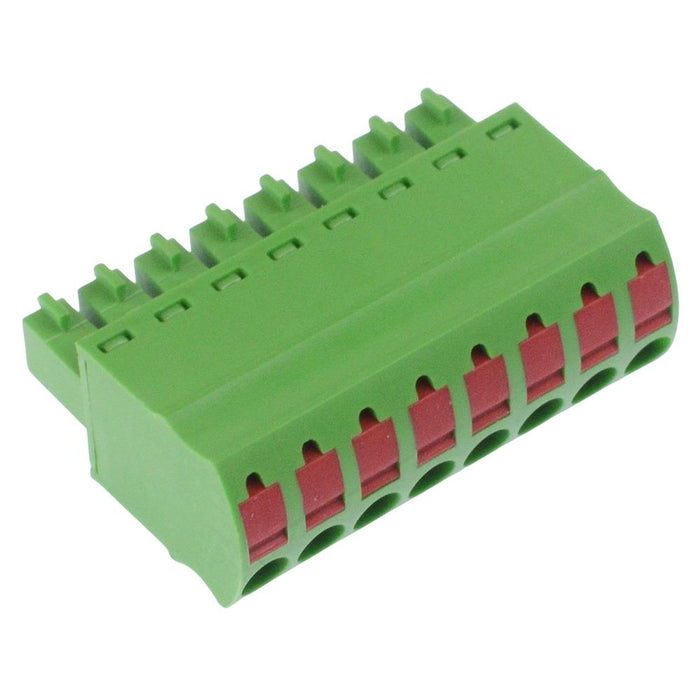

8-Way 3.81mm Screwless Pluggable Terminal Block Green 10A 300V
by PTR HARTMANN
SKU 487755
MPN: AKZ4551/08KD-3,81-GREEN
Availability:
68 in stock
Save 8%
Original price
£2.02
Original price
£2.02
-
Original price
£2.02
Original price
£2.02
Current price
£1.86
£1.86
-
£1.86
Current price
£1.86
8 pole pluggable screwless terminal block manufactured by PTR HARTMANN, featuring a 3.81mm pitch and parallel wire entry. The terminal blocks are rated up to 10A, making them suitable for a wide range of PCB applications.
8 pole 3.81mm pitch Push-in connection Lever for easy opening of the clamping point Parallel wire entry Material: PA66 Rating: 10A 300V Wire size: 26-16AWG
Specification
| Back Order Lead Time | 10 Days |
| Colour | Green |
| Contact Material | Copper Alloy |
| Current Rating | 10A |
| Housing Material | PA66 |
| Mounting Type | Cable Mount |
| Number of Ways | 8 |
| Operating Temperature | -40°C to +105°C |
| Pitch | 3.81mm |
| Termination Method | Spring Lever |
| Voltage Rating | 300VAC |
| Wire Range | 26-16AWG |
