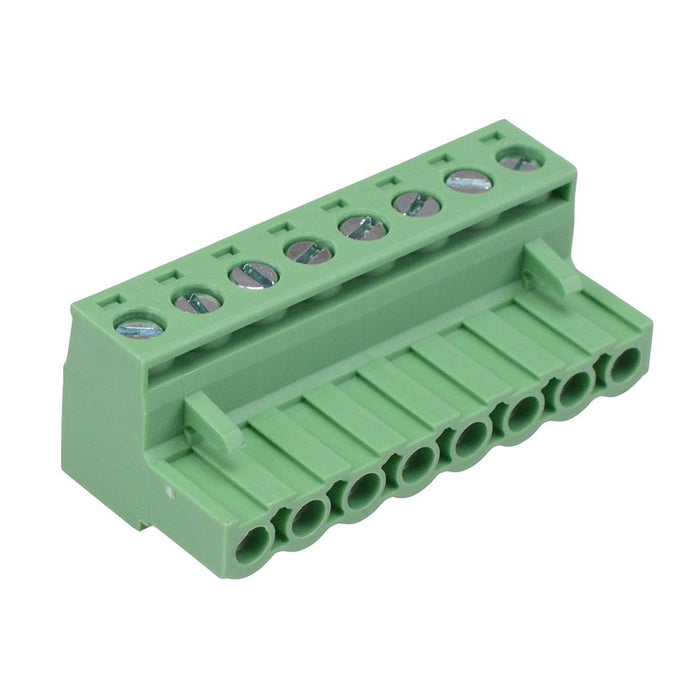

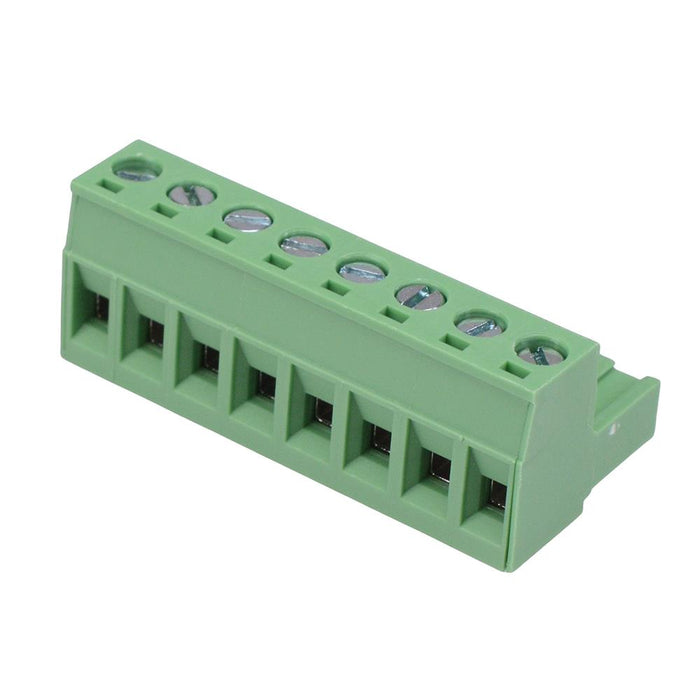

8-Way 5.00mm Right Angle Pluggable Terminal Block 15A 300V
by Degson
SKU 488750
MPN: 2EDGK-5.00-08P14
Availability:
42 in stock
Original price
£1.06
-
Original price
£1.06
Original price
£1.06
£1.11
£1.11
-
£1.11
Current price
£1.11
8 pole pluggable terminal block by Degson, featuring a 5.00mm pitch and right angle orientation. The terminal blocks are rated up to 15A, suitable for mating with 5mm open and closed style PCB headers.
8 pole 5.00mm pitch Right angle Material: PA66 Rating: 15A 300V Wire size: 28-12AWG
Specification
| Back Order Lead Time | 150 Days |
| Contact Material | Copper Alloy |
| Current Rating | 15A |
| Housing Material | PA66 |
| MOQ | 1 |
| Mounting Type | Cable Mount |
| Number of Ways | 8 |
| Operating Temperature | -40°C to +105°C |
| Pitch | 5.00mm |
| Termination Method | Screw |
| Voltage Rating | 300V |
| Wire Range | 28-12AWG |
