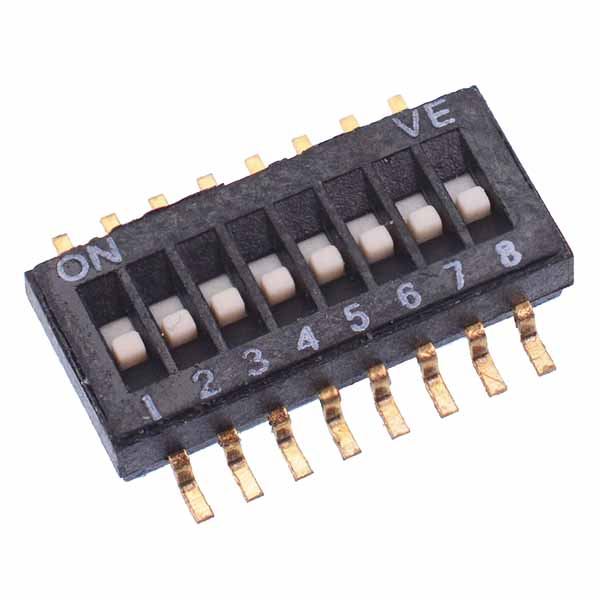

8 Way Half Pitch SMD DIL Switch 1.27mm
SKU 483049
MPN: 483049
Availability:
250 in stock
Original price
£0.82
-
Original price
£0.82
Original price
£0.82
£0.82
£0.82
-
£0.82
Current price
£0.82
8 way micro miniature DIL switch featuring SPST contacts and a 1.27mm pitch, suitable for mounting to a PCB.
2 ways 1.27mm terminal pitch Switching rating: 25mA 24VDC Steady state rating: 100mA 50VDC SPST contacts Height above PCB: 2.3mm Body width: 5.4mm
Specification
| Actuation | Latching |
| Back Order Lead Time | 30 Days |
| Colour | Black |
| Contact Configuration | SPST |
| Contact Rating | 25mA 24VDC |
| Current Rating | 25mA |
| Electrical Life | 1,000 Cycles |
| Material | PPS |
| Mounting Style | Through Hole |
| Number of Positions | 2 |
| Number of Ways | 8 |
| Operating Force | 9.8N |
| Operating Temperature | -40°C to +85°C |
| Pitch | 1.27mm |
| Switch Operation | On-Off |
| Terminal Type | Solder |
| Voltage Rating | 24VDC |
