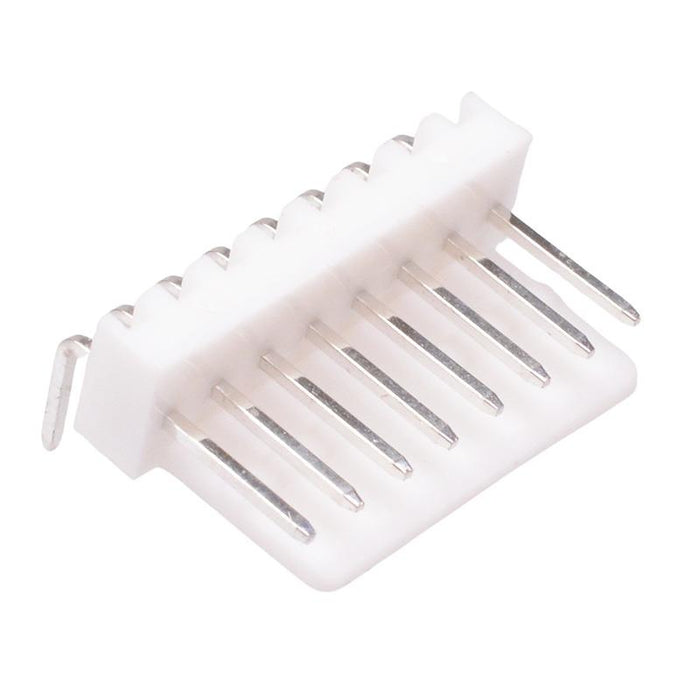

8 Way Right Angle PCB Header 2.54mm
SKU 484725
MPN: 484725
Availability:
1958 in stock
Original price
£0.16
-
Original price
£0.16
Original price
£0.16
£0.16
£0.16
-
£0.16
Current price
£0.16
Single row 8 way horizontal pin header with 2.54mm pitch suitable for connecting wires to PCBs. The headers feature a friction lock to ensure secure retention when mated and are suitable for replacing Molex 5051 connectors.
2.54mm pitch Solder termination Nylon-66 housing Tin plated brass contacts Rated Current: 4A Rated Voltage: 250V
Specification
| Back Order Lead Time | 45 Days |
| Contact Material | Tin Plated Brass |
| Current Rating | 4A |
| Housing Material | PA66 |
| Mounting Type | PCB Mount |
| Number of Ways | 8 |
| Operating Temperature | -25°C to +85°C |
| Pitch | 2.54mm |
| Termination Method | Solder |
| Voltage Rating | 250VAC |
| Wire Range | 28-22AWG |
