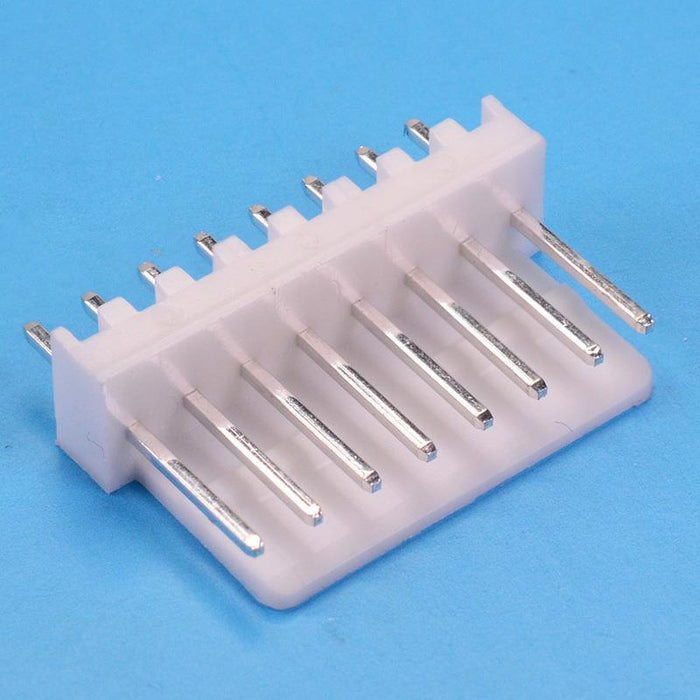

8-Way Straight Pin PCB Header 2.54mm

SKU 483330

MPN: 483330

Availability:
656 in stock
Original price £0.14 - Original price £0.14
Original price
£0.14 Inc VAT
£0.14 - £0.14
Current price £0.14 Inc VAT
Single row 8 way pin header with 2.54mm pitch suitable for connecting wires to PCBs. The headers feature a friction lock to ensure secure retention when mated and are suitable for replacing Molex 5051 connectors.

  • 2.54mm pitch
  • Solder termination
  • Nylon-66 housing
  • Tin plated brass contacts
  • Rated Current: 4A
  • Rated Voltage: 250V
  • Specification
    Back order lead time 45 Days
    Current rating 4A
    Housing material PA66
    Moq 5
    Mounting type PCB Mount
    Number of pins 8
    Number of ways 8
    Operating temperature -25°C to +85°C
    Pitch 2.54mm
    Termination method Solder
    Voltage rating 250VAC
    Wire range 22-28AWG
